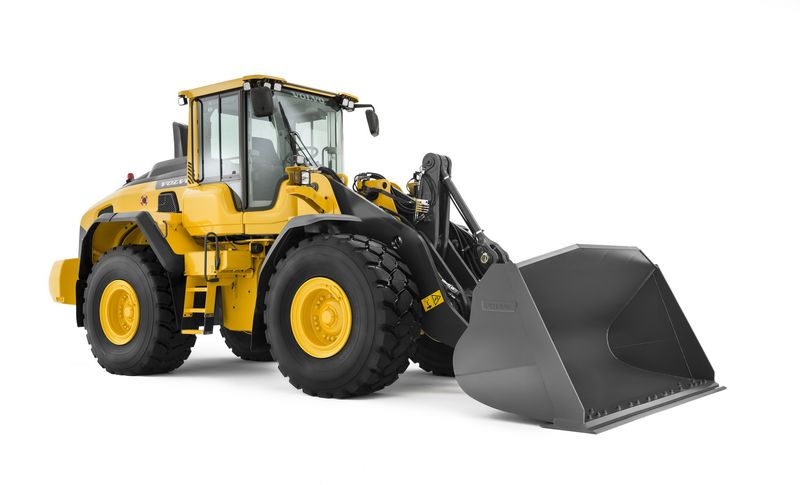

Volvo L120H
Browse All Volvo or Wheel Loader Models
Contents:
Bucket
| Breakout Force | 41364.85 lb (184 kN) |
Dimensions
| Ground Clearance | 1.51 ft in (460 mm) |
| Length With Bucket On Ground | 27.24 ft in (8300 mm) |
| Width Over Tires | 8.76 ft in (2670 mm) |
| Height To Top Of Cab | 11.13 ft in (3390 mm) |
| Wheelbase | 10.5 ft in (3200 mm) |
| Hinge Pin - Max Height | 13.46 ft in (4100 mm) |
Steering System
| Working Pressure | 21 MPa, 210 bar |
| Articulation Angle | 40 degrees |
| Stroke | 1.6 ft in (486 mm) |
| Steering Cylinders | 2 |
| Cylinder Bore | 3.2 in (80 mm) |
| Rod Diameter | 2 in (50 mm) |
| Maximum Flow | 31.8 gal/min (120 L/min) |
Hydraulic Cycle Times (Unloaded)
| Lift | 5.4 sec |
| Lower | 2.5 sec |
| Tilt | 2.1 sec |
| Total Cycle Time | 10 sec |
Electrical System
| Battery Capacity | 2 x 170 Ah |
| Cold Cranking Capacity | 1000 A |
| Alternator Rating | 2280/80 (W/A) |
| Starter Motor Output | 7.4 hp (5.5 kw) |
| Voltage | 24 V V (deletedelete) |
| Batteries | 2 x 12 V |
Engine
| Number Of Cylinders | 6 |
| Engine Model | Volvo D8J |
| Net Power | 272.3 hp (203 kw) |
| Gross Power | 272.3 hp (203 kw) |
| Power Measured @ | 1500 rpm |
| Max Torque | Gross - 1320 Nm, Net - 1317 Nm |
| Displacement | 476 cu in (7.8 L) |
| Torque Measured @ | 1450 rpm |
| Aspiration | Turbocharged |
Drive Train
| Torque Multiplication, Stall Ratio | 2.47:1 |
| Transport Speed, Maximum | 24.9 mph (40.1 km/h) |
| Transmission | Volvo HTL 206C |
Operational
| Def Tank Capacity | 6.7 gal (25 L) |
| Fuel Capacity | 71.4 gal (270 L) |
| Hydraulic System Fluid Capacity | 35.2 gal (133 L) |
| Engine Oil Fluid Capacity | 5.9 gal (22 L) |
| Cooling System Fluid Capacity | 11.4 gal (43 L) |
| Transmission Fluid Capacity | 10.1 gal (38 L) |
Axles
| Rear Axle Oscillation | 13 degrees |
| Axle Oil Front | 9.6 gal (36 L) |
| Axle Oil Rear | 10.9 gal (41 L) |
Hydraulic System
| Working Pressure | Pump 1 - 27 MPa, Pump 2 - 29 MPa, Pump 3 - 21 MPa |
| Engine Speed | 1900 rpm |
Axles
| Front | Volvo AWB 31 |
| Rear | Volvo AWB 30 |
