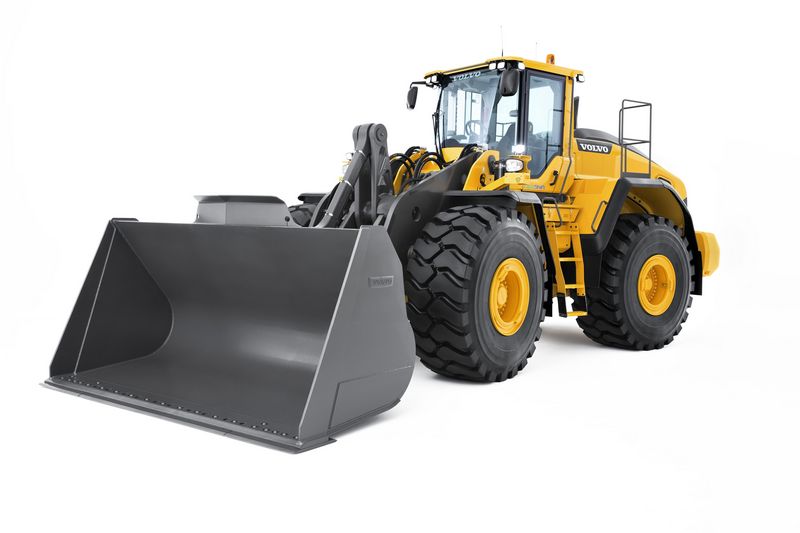

Volvo L180H
Browse All Volvo or Wheel Loader Models
Contents:
Bucket
| Breakout Force | 53077.39 lb (236.1 kN) |
Dimensions
| Ground Clearance | 2.01 ft in (610 mm) |
| Length With Bucket On Ground | 29.7 ft in (9050 mm) |
| Width Over Tires | 9.72 ft in (2960 mm) |
| Height To Top Of Cab | 11.75 ft in (3580 mm) |
| Wheelbase | 1.58 ft in (480 mm) |
| Hinge Pin - Max Height | 14.67 ft in (4470 mm) |
Steering System
| Working Pressure | 21 MPa, 210 bar |
| Articulation Angle | 37 degrees |
| Stroke | 1.8 ft in (525 mm) |
| Steering Cylinders | 2 |
| Cylinder Bore | 4 in (100 mm) |
| Rod Diameter | 2.4 in (60 mm) |
| Maximum Flow | 53.4 gal/min (202 L/min) |
Hydraulic Cycle Times (Unloaded)
| Lift | 6.4 sec |
| Lower | 3.3 sec |
| Tilt | 1.8 sec |
| Total Cycle Time | 11.5 sec |
Electrical System
| Battery Capacity | 2 x 170 Ah |
| Cold Cranking Capacity | 1000 A |
| Alternator Rating | 2280/80 (W/A) |
| Starter Motor Output | 9.4 hp (7 kw) |
| Voltage | 24 V V (deletedelete) |
| Batteries | 2 x 12 V |
Engine
| Number Of Cylinders | 6 |
| Engine Model | Volvo D13J |
| Net Power | 328.6 hp (245 kw) |
| Gross Power | 329.9 hp (246 kw) |
| Power Measured @ | 1400 rpm |
| Max Torque | Gross - 2030 Nm, Net - 2024 Nm |
| Displacement | 781.2 cu in (12.8 L) |
| Torque Measured @ | 1000 rpm |
| Aspiration | Turbocharged |
Drive Train
| Torque Multiplication, Stall Ratio | 2.09:1 |
| Transport Speed, Maximum | 23.6 mph (38 km/h) |
| Transmission | Volvo HTL 223 |
Operational
| Def Tank Capacity | 8.2 gal (31 L) |
| Fuel Capacity | 96.7 gal (366 L) |
| Hydraulic System Fluid Capacity | 41.3 gal (156 L) |
| Engine Oil Fluid Capacity | 13.3 gal (50 L) |
| Cooling System Fluid Capacity | 14.6 gal (55 L) |
| Transmission Fluid Capacity | 12.7 gal (48 L) |
Axles
| Rear Axle Oscillation | 15 degrees |
| Axle Oil Front | 12.2 gal (46 L) |
| Axle Oil Rear | 14.6 gal (55 L) |
Hydraulic System
| Working Pressure | Pump 1 - 29 MPa, Pump 2 - 31 MPa, Pump 3 - 25 MPa |
| Engine Speed | 1900 rpm |
Axles
| Front | Volvo AWB 40B |
| Rear | Volvo AWB 40B |
