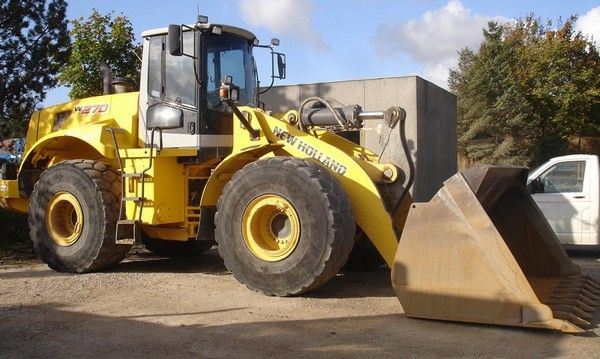

New Holland W270
Browse All New Holland or Wheel Loader Models
Contents:
Bucket
| Bucket Capacity - Heaped | 5.89 yd3 (4.5 m3) |
| Bucket Capacity - Struck | 5.37 yd3 (4.1 m3) |
| Bucket Width | 9.85 ft in (3000 mm) |
| Breakout Force | 4631063.95 lb (20600 kN) |
Dimensions
| Ground Clearance | 1.61 ft in (490 mm) |
| Length With Bucket On Ground | 28.83 ft in (8785 mm) |
| Width Over Tires | 9.72 ft in (2960 mm) |
| Height To Top Of Cab | 11.77 ft in (3587 mm) |
| Wheelbase | 11.16 ft in (3400 mm) |
| Hinge Pin - Max Height | 14.41 ft in (4390 mm) |
| Reach At Max Lift And Dump | 4.02 ft in (1225 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSM11 |
| Net Power | 275 hp (205.1 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 107 lb ft (145 Nm) |
| Displacement | 659.1 cu in (10.8 L) |
| Torque Measured @ | 1200 rpm |
| Aspiration | turbocharged, aftercooled |
Operational
| Operating Weight | 52161.4 lb (23660 kg) |
| Fuel Capacity | 96.2 gal (364 L) |
| Hydraulic System Fluid Capacity | 38.1 gal (144 L) |
| Engine Oil Fluid Capacity | 9 gal (34 L) |
| Cooling System Fluid Capacity | 20.4 gal (77 L) |
| Transmission Fluid Capacity | 9.3 gal (35 L) |
| Front Axle/Diff Fluid Capacity | 12.7 gal (48 L) |
| Rear Axle/Diff Fluid Capacity | 12.7 gal (48 L) |
| Static Tipping Weight | 42659.5 lb (19350 kg) |
| Turning Radius | 22.7 ft in (6900 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Rear Axle Oscillation | 26 degrees |
| Tire Size | 26.5-25 XHA |
Transmission
| Transmission Type | Power-Shift Countershaft |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 23 mph (36.9 km/h) |
| Max Speed - Reverse | 24.8 mph (39.8 km/h) |
Hydraulic System
| Relief Valve Setting | 3045.8 psi (21000 kPa) |
| Pump Flow Capacity | 102.5 gal/min (388 L/min) |
| Raise Time | 6.2 sec |
| Dump Time | 1.4 sec |
| Lower Time | 3.8 sec |
| Pump Type | Sealed system with anticavitation and relief valves |
