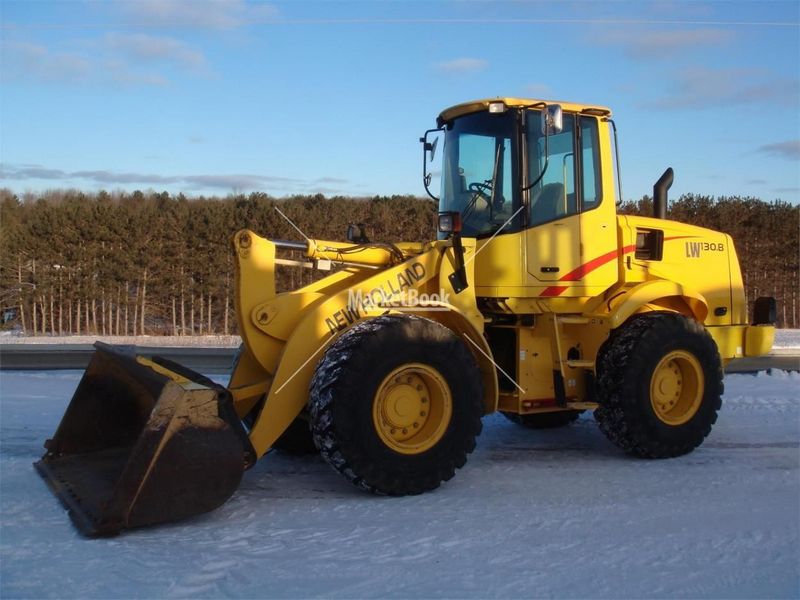

New Holland LW130.B Long Reach
Browse All New Holland or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.91 ft in (3325 mm) |
| Bucket Capacity - Heaped | 2.57 yd3 (1.96 m3) |
| Bucket Capacity - Struck | 2.18 yd3 (1.66 m3) |
| Bucket Width | 8.54 ft in (2602 mm) |
| Breakout Force | 27386 lb (27386 -) |
Dimensions
| Ground Clearance | 1.56 ft in (474 mm) |
| Length With Bucket On Ground | 23.97 ft in (7304 mm) |
| Width Over Tires | 7.95 ft in (2423 mm) |
| Height To Top Of Cab | 11.16 ft in (3400 mm) |
| Wheelbase | 9.52 ft in (2900 mm) |
| Hinge Pin - Max Height | 13.98 ft in (4259 mm) |
| Reach At Max Lift And Dump | 3.02 ft in (920 mm) |
Engine
| Engine Make | 2249 |
| Engine Model | 667TA/M2, Tier 2 certified |
| Net Power | 149 hp (111.2 kw) |
| Gross Power | 139 hp (103.7 kw) |
| Max Torque | 375.5 lb ft (509 Nm) |
| Displacement | 408.9 cu in (6.7 L) |
| Aspiration | Turbocharged, air to air intercooled |
| Torque Rise | 33 % |
Operational
| Operating Weight | 27734.2 lb (12580 kg) |
| Fuel Capacity | 50 gal (189 L) |
| Hydraulic System Fluid Capacity | 30.1 gal (113.6 L) |
| Engine Oil Fluid Capacity | 4 gal (15.1 L) |
| Cooling System Fluid Capacity | 6.4 gal (24 L) |
| Transmission Fluid Capacity | 5 gal (18.9 L) |
| Front Axle/Diff Fluid Capacity | 5.9 gal (22 L) |
| Rear Axle/Diff Fluid Capacity | 5.9 gal (22 L) |
| Static Tipping Weight | 17639.2 lb (8001 kg) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 20.5x25 12 ply L2 |
Transmission
| Transmission Type | countershaft, power shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 24 mph (38.6 km/h) |
| Max Speed - Reverse | 15.6 mph (25 km/h) |
Hydraulic System
| Relief Valve Setting | 3600.2 psi (24822 kPa) |
| Pump Flow Capacity | 45.2 gal/min (171 L/min) |
| Raise Time | 5.4 sec |
| Dump Time | 1.5 sec |
| Lower Time | 4.4 sec |
| Pump Type | variable displacement, piston pump |
