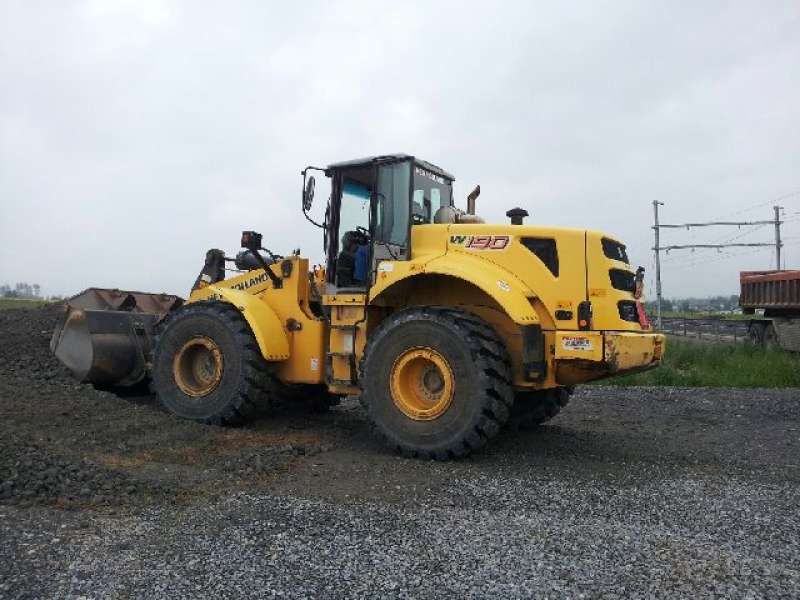

New Holland W190
Browse All New Holland or Wheel Loader Models
Contents:
Bucket
| Bucket Capacity - Heaped | 4.19 yd3 (3.2 m3) |
| Bucket Width | 9.72 ft in (2960 mm) |
| Breakout Force | 3776790.02 lb (16800 kN) |
Dimensions
| Ground Clearance | 1.46 ft in (445 mm) |
| Length With Bucket On Ground | 26.68 ft in (8130 mm) |
| Width Over Tires | 9.06 ft in (2760 mm) |
| Height To Top Of Cab | 11.28 ft in (3436 mm) |
| Wheelbase | 10.5 ft in (3200 mm) |
| Hinge Pin - Max Height | 13.37 ft in (4073 mm) |
| Reach At Max Lift And Dump | 3.84 ft in (1170 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Model | CNH NEF 6CRTAA |
| Net Power | 201.2 hp (150 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 360.1 cu in (5.9 L) |
| Aspiration | turbo aftercooler |
Operational
| Operating Weight | 39418.7 lb (17880 kg) |
| Fuel Capacity | 66.1 gal (250 L) |
| Hydraulic System Fluid Capacity | 39.7 gal (150 L) |
| Engine Oil Fluid Capacity | 4 gal (15 L) |
| Cooling System Fluid Capacity | 11.9 gal (45 L) |
| Transmission Fluid Capacity | 6.9 gal (26 L) |
| Front Axle/Diff Fluid Capacity | 8.5 gal (32 L) |
| Rear Axle/Diff Fluid Capacity | 8.5 gal (32 L) |
| Static Tipping Weight | 31967.1 lb (14500 kg) |
| Turning Radius | 21.4 ft in (6500 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
| Rear Axle Oscillation | 26 degrees |
| Tire Size | 23.5-25 GP-2B |
Transmission
| Transmission Type | PowerShift CounterShaft |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 22.8 mph (36.6 km/h) |
| Max Speed - Reverse | 15.6 mph (25.1 km/h) |
Hydraulic System
| Relief Valve Setting | 3045.8 psi (21000 kPa) |
| Pump Flow Capacity | 85.9 gal/min (325 L/min) |
| Raise Time | 6.2 sec |
| Dump Time | 1.4 sec |
| Lower Time | 3.1 sec |
| Pump Type | Sealed system with anticavitation and relief valves |
