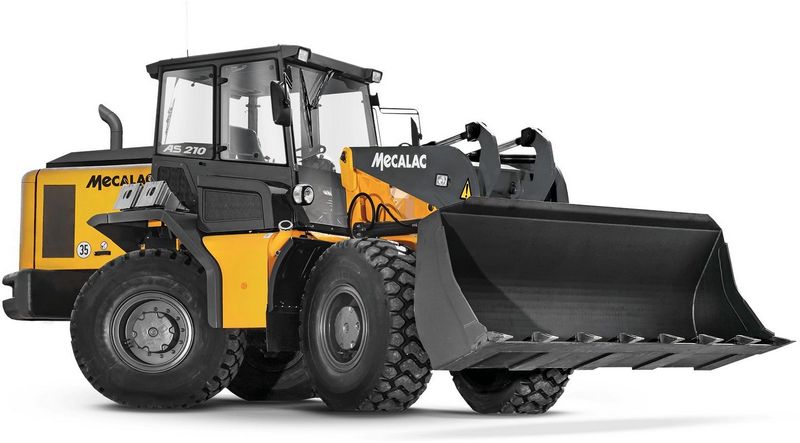

Mecalac AS 210E
Browse All Mecalac or Wheel Loader Models
Contents:
Bucket
| Breakout Force | 13000 daN |
| Dumping Angle, Top | 45 degrees |
| Thrust Force | 11300 daN |
| Tilting Angle | 45 degrees |
| Tipping Load Standard Bucket | 17196.06 lb (7800 kg) |
| Tipping Load Standard Bucket, Max. Turned, 90 | 16534.67 lb (7500 kg) |
| Lifting Force | 10600 daN |
| Payload On Forks, Max. Turned, Frontal | 10361.73 lb (4700 kg) |
| Payload On Forks, Max. Turned, Max. Swivelled | 14550.51 lb (6600 kg) |
Dimensions
| Ground Clearance | 1.65 ft in (500 mm) |
| Length With Bucket On Ground | 23.48 ft in (7155 mm) |
| Height To Top Of Cab | 10.36 ft in (3155 mm) |
| Turning Radius | 16.36 ft in (4985 mm) |
Engine
| Engine Model | TCD 6.1 L6 |
| Net Power | 175 hp (130.5 kw) |
| Power Measured @ | 2200 rpm |
| Battery | 2 x 88 Ah |
| Torque Measured @ | 1450 rpm |
| Alternator | 100 amps |
Operational
| Operating Weight | 33069.4 lb (15000 kg) |
| Fuel Capacity | 66.1 gal (250 L) |
| Hydraulic System Fluid Capacity | 60.8 gal (230 L) |
| Engine Oil Fluid Capacity | 3.7 gal (14 L) |
| Front Axle/Diff Fluid Capacity | 6.7 gal (25 L) |
| Rear Axle/Diff Fluid Capacity | 6.7 gal (25 L) |
| Steering Angle | 25 degrees |
| Operating Voltage | 24 V |
| Rear Axle Oscillation | 10 degrees |
Transmission
| Max Speed - Forward | 12.5 mph (20 km/h) |
