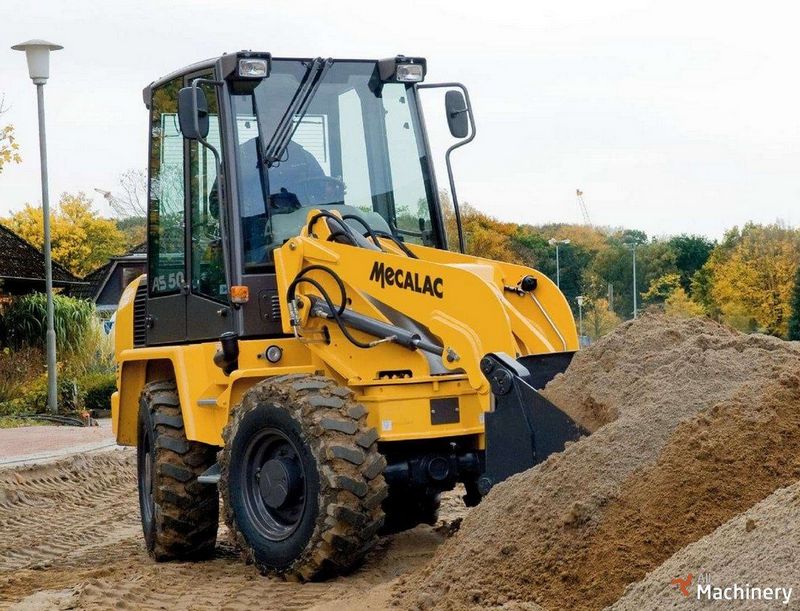

Mecalac AS 50
Browse All Mecalac or Wheel Loader Models
Contents:
Bucket
| Breakout Force | 3400 daN |
| Dumping Angle, Top | 46 degrees |
| Thrust Force | 2500 daN |
| Tilting Angle | 45 degrees |
| Tipping Load Standard Bucket | 5313.15 lb (2410 kg) |
| Tipping Load Standard Bucket, Max. Turned, 90 | 4552.55 lb (2065 kg) |
| Lifting Force | 2400 daN |
| Payload On Forks, Max. Turned, Frontal | 3615.59 lb (1640 kg) |
| Payload On Forks, Max. Turned, Max. Swivelled | 2843.97 lb (1290 kg) |
Dimensions
| Ground Clearance | 1.05 ft in (320 mm) |
| Length With Bucket On Ground | 15.97 ft in (4865 mm) |
| Height To Top Of Cab | 8.37 ft in (2550 mm) |
| Turning Radius | 9.09 ft in (2770 mm) |
Engine
| Engine Model | D 2011 L03i |
| Net Power | 40 hp (29.9 kw) |
| Power Measured @ | 2500 rpm |
| Max Torque | 1700 min-1 |
| Battery | 66 Ah |
| Alternator | 60 amps |
Operational
| Operating Weight | 9171.3 lb (4160 kg) |
| Fuel Capacity | 11.9 gal (45 L) |
| Hydraulic System Fluid Capacity | 18.5 gal (70 L) |
| Engine Oil Fluid Capacity | 1.6 gal (6 L) |
| Front Axle/Diff Fluid Capacity | 1.9 gal (7 L) |
| Rear Axle/Diff Fluid Capacity | 2 gal (7.5 L) |
| Steering Angle | 35 degrees |
| Operating Voltage | 12 V |
| Rear Axle Oscillation | 10 degrees |
| Tire Size | 12,5-18 |
Transmission
| Max Speed - Forward | 12.5 mph (20 km/h) |
