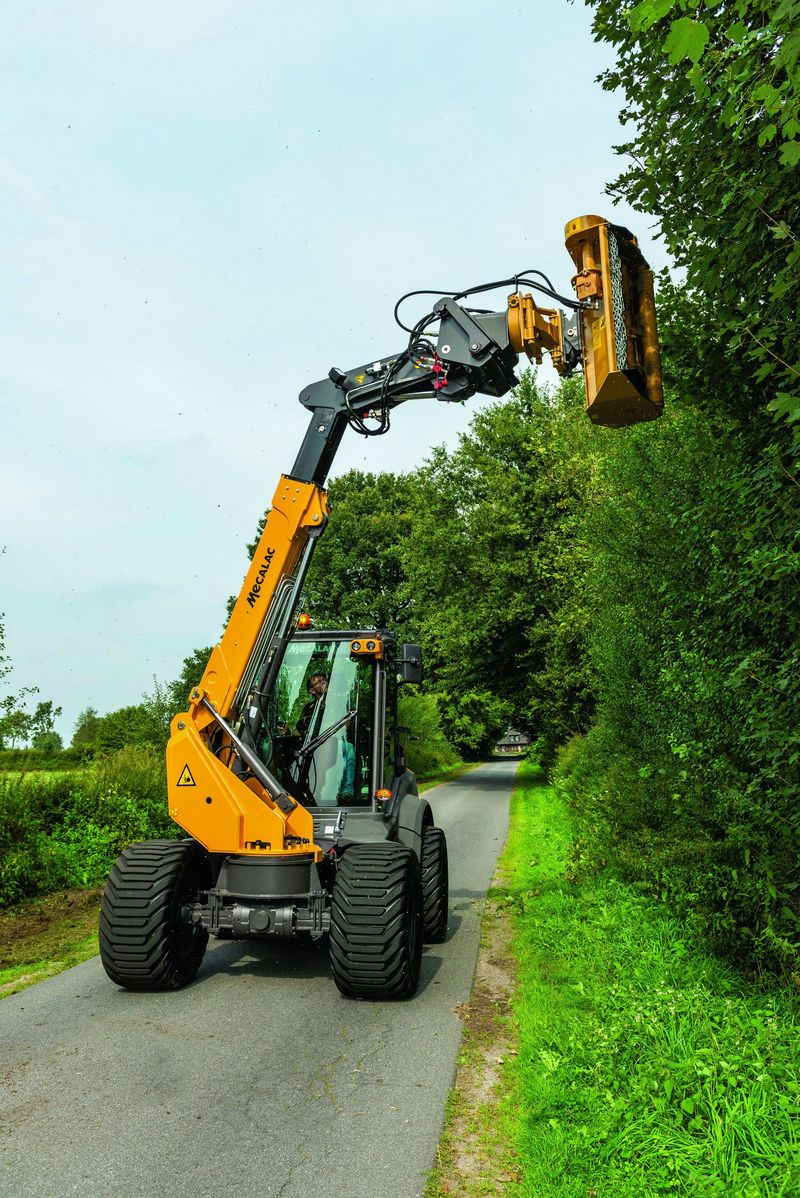

Mecalac AS 900
Browse All Mecalac or Wheel Loader Models
Contents:
Bucket
| Breakout Force | 5400 daN |
| Dumping Angle, Top | 45 degrees |
| Payload On Forks, Max. Turned, Max. Swivelled | 5070.64 lb (2300 kg) |
| Thrust Force | 5800 daN |
| Tilting Angle | 45 degrees |
| Tipping Load Standard Bucket | 8157.11 lb (3700 kg) |
| Tipping Load Standard Bucket, Max. Turned, 90 | 8598.03 lb (3900 kg) |
| Lifting Force | 5800 daN |
| Payload On Forks, Max. Turned, Frontal | 5070.64 lb (2300 kg) |
Dimensions
| Ground Clearance | 1.28 ft in (390 mm) |
| Length With Bucket On Ground | 18.34 ft in (5590 mm) |
| Height To Top Of Cab | 9.29 ft in (2830 mm) |
| Wheelbase | 6.5 ft in (1980 mm) |
| Turning Radius | 11.32 ft in (3450 mm) |
Engine
| Engine Model | TCD 2,9 L4 |
| Net Power | 75 hp (56 kw) |
| Power Measured @ | 2600 rpm |
| Battery | 95 Ah |
| Torque Measured @ | 1600 rpm |
| Alternator | 120 amps |
Operational
| Operating Weight | 14638.7 lb (6640 kg) |
| Fuel Capacity | 34.4 gal (130 L) |
| Hydraulic System Fluid Capacity | 35.4 gal (134 L) |
| Engine Oil Fluid Capacity | 2.2 gal (8 L) |
| Front Axle/Diff Fluid Capacity | 3 gal (11 L) |
| Rear Axle/Diff Fluid Capacity | 3.2 gal (12 L) |
| Steering Angle | 35 degrees |
| Operating Voltage | 12 V |
| Rear Axle Oscillation | 10 degrees |
| Tire Size | 14.5-20 |
Transmission
| Max Speed - Forward | 12.5 mph (20 km/h) |
