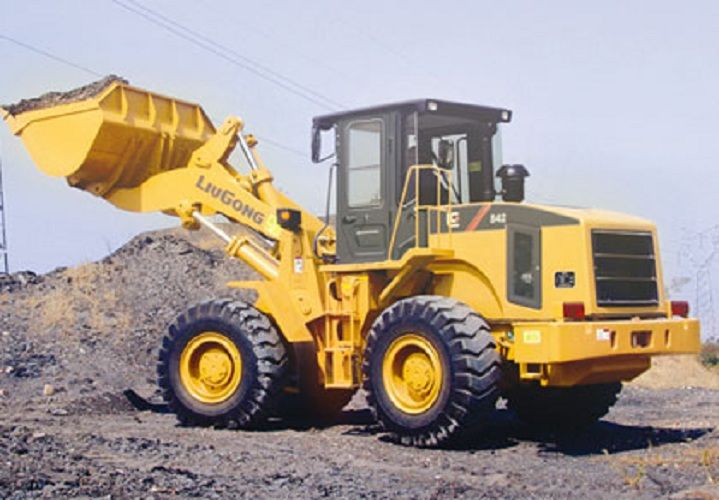

LiuGong CLG842 II
Browse All LiuGong or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.52 ft in (2900 mm) |
| Bucket Width | 9.08 ft in (2766 mm) |
| Bucket Capacity - Heaped | 3.01 yd3 (2.3 m3) |
Dimensions
| Ground Clearance | 1.51 ft in (460 mm) |
| Length With Bucket On Ground | 24.65 ft in (7511 mm) |
| Width Over Tires | 8.01 ft in (2440 mm) |
| Height To Top Of Cab | 10.5 ft in (3200 mm) |
| Wheelbase | 9.85 ft in (3000 mm) |
| Reach At Max Lift And Dump | 3.4 ft in (1034 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSB5.9-C175 |
| Net Power | 155.6 hp (116 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 360.1 cu in (5.9 L) |
Operational
| Operating Weight | 30203.4 lb (13700 kg) |
| Static Tipping Weight | 17637 lb (8000 kg) |
| Turning Radius | 20.6 ft in (6250 mm) |
| Tire Size | 20.5x25 |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 23.5 mph (37.7 km/h) |
| Max Speed - Reverse | 16 mph (25.6 km/h) |
