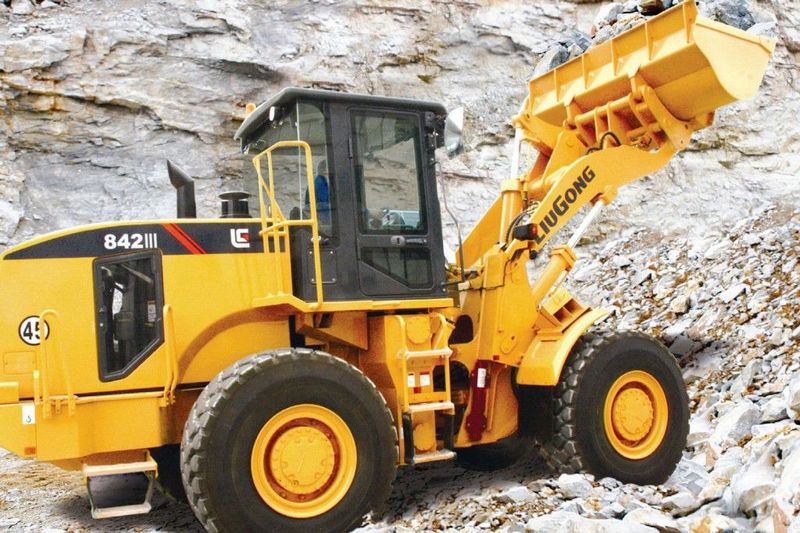

LiuGong 842III
Browse All LiuGong or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.58 ft in (2917 mm) |
| Bucket Capacity - Heaped | 3.01 yd3 (2.3 m3) |
| Bucket Width | 8.9 ft in (2710 mm) |
| Breakout Force | _ - (120 kN) |
Dimensions
| Ground Clearance | 1.35 ft in (409 mm) |
| Length With Bucket On Ground | 25.27 ft in (7701 mm) |
| Width Over Tires | 8.14 ft in (2479 mm) |
| Height To Top Of Cab | 11.19 ft in (3410 mm) |
| Wheelbase | 9.85 ft in (3000 mm) |
| Reach At Max Lift And Dump | 3.48 ft in (1060 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | QSB 6.7 |
| Net Power | 184 hp (137.3 kw) |
| Gross Power | 199 hp (148.4 kw) |
| Displacement | 409 cu in (6.8 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 30864 lb (13999.7 kg) |
| Fuel Capacity | 57.1 gal (216 L) |
| Hydraulic System Fluid Capacity | 52.9 gal (200 L) |
| Engine Oil Fluid Capacity | 5.9 gal (22 L) |
| Transmission Fluid Capacity | 11.9 gal (45 L) |
| Front Axle/Diff Fluid Capacity | 9.3 gal (35 L) |
| Rear Axle/Diff Fluid Capacity | 9 gal (34 L) |
| Static Tipping Weight | 23830 lb (10809.2 kg) |
| Turning Radius | 20.2 ft in (6150 mm) |
| Operating Voltage | 24 V |
| Tire Size | 20.5R25 |
Transmission
| Transmission Type | Countershaft-type |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 23.6 mph (38 km/h) |
| Max Speed - Reverse | 16.5 mph (26.6 km/h) |
Hydraulic System
| Relief Valve Setting | 2900 psi (19994.8 kPa) |
| Pump Flow Capacity | 65.5 gal/min (248 L/min) |
| Raise Time | 6.3 sec |
| Dump Time | 3.1 sec |
| Lower Time | 3.7 sec |
| Pump Type | vane pump |
