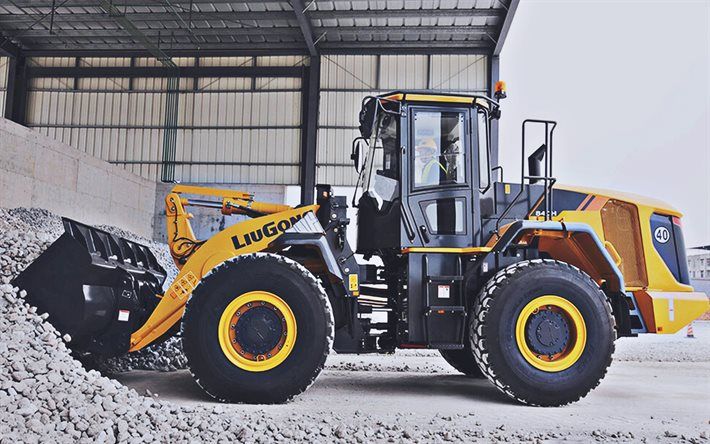

LiuGong 840II
Browse All LiuGong or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.52 ft in (2900 mm) |
| Bucket Capacity - Heaped | 3.01 yd3 (2.3 m3) |
| Bucket Width | 9.08 ft in (2766 mm) |
| Breakout Force | 26977.08 lb (120 kN) |
Dimensions
| Ground Clearance | 1.35 ft in (410 mm) |
| Length With Bucket On Ground | 24.65 ft in (7511 mm) |
| Width Over Tires | 8.11 ft in (2470 mm) |
| Height To Top Of Cab | 10.99 ft in (3347 mm) |
| Wheelbase | 9.85 ft in (3000 mm) |
| Hinge Pin - Max Height | 12.44 ft in (3790 mm) |
| Reach At Max Lift And Dump | 3.4 ft in (1034 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSB5.9C173 |
| Net Power | 173 hp (129.1 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 590.1 lb ft (800 Nm) |
| Displacement | 360.1 cu in (5.9 L) |
| Torque Measured @ | 1500 rpm |
| Aspiration | turbocharged |
Operational
| Fuel Capacity | 55.5 gal (210 L) |
| Hydraulic System Fluid Capacity | 60.8 gal (230 L) |
| Engine Oil Fluid Capacity | 5.9 gal (22 L) |
| Transmission Fluid Capacity | 11.9 gal (45 L) |
| Front Axle/Diff Fluid Capacity | 9.3 gal (35 L) |
| Rear Axle/Diff Fluid Capacity | 9 gal (34 L) |
| Static Tipping Weight | 17637 lb (8000 kg) |
Transmission
| Transmission Type | counter shaft-type power shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 23.5 mph (37.7 km/h) |
| Max Speed - Reverse | 16 mph (25.6 km/h) |
Hydraulic System
| Relief Valve Setting | 2610.7 psi (18000 kPa) |
| Raise Time | 6.6 sec |
| Dump Time | 1.1 sec |
| Lower Time | 3.4 sec |
