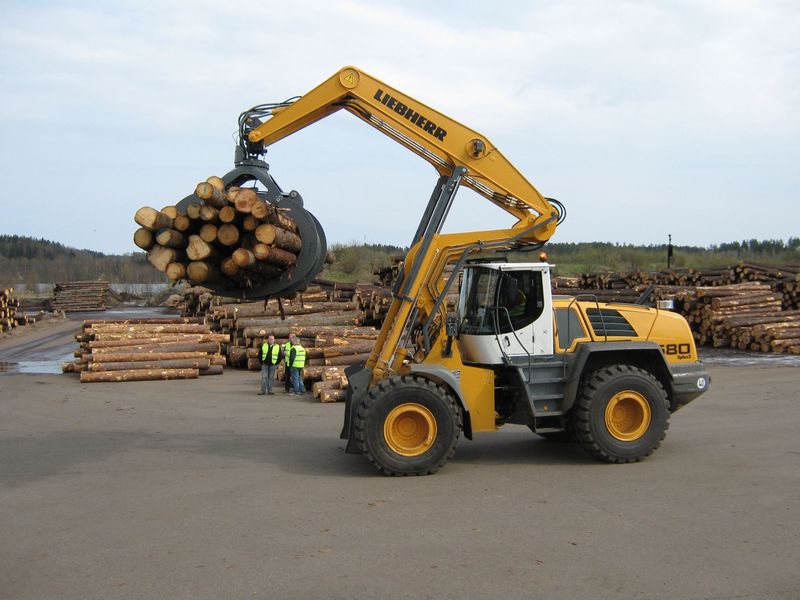

Liebherr L580
Browse All Liebherr or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.11 ft in (3081.53 mm) |
| Bucket Capacity - Heaped | 6.5 yd3 (4.97 m3) |
| Bucket Width | 10.1 ft in (3078.48 mm) |
| Breakout Force | 42715 lb (190.01 kN) |
Dimensions
| Ground Clearance | 1.9 ft in (579.12 mm) |
| Length With Bucket On Ground | 31.8 ft in (9692.64 mm) |
| Height To Top Of Cab | 11.9 ft in (3627.12 mm) |
| Wheelbase | 12.1 ft in (3688.08 mm) |
| Hinge Pin - Max Height | 15 ft in (4572 mm) |
| Reach At Max Lift And Dump | 3.9 ft in (1188.72 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Model | D936 A7 |
| Gross Power | 288 hp (214.8 kw) |
| Max Torque | 1033 lb ft |
| Displacement | 642 cu in (10.6 L) |
| Torque Measured @ | 1100 rpm |
Operational
| Operating Weight | 55510 lb (25179 kg) |
| Fuel Capacity | 106 gal (401.3 L) |
| Hydraulic System Fluid Capacity | 70 gal (265 L) |
| Engine Oil Fluid Capacity | 11.6 gal (44 L) |
| Cooling System Fluid Capacity | 13.7 gal (51.9 L) |
| Transmission Fluid Capacity | 3 gal (11.4 L) |
| Front Axle/Diff Fluid Capacity | 11.1 gal (42.1 L) |
| Rear Axle/Diff Fluid Capacity | 11.1 gal (42.1 L) |
| Static Tipping Weight | 40785 lb (18499.8 kg) |
| Tire Size | 26.5 R 25 |
Transmission
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 24.9 mph (40.1 km/h) |
| Max Speed - Reverse | 24.9 mph (40.1 km/h) |
Hydraulic System
| Pump Flow Capacity | 77 gal/min (291.5 L/min) |
| Raise Time | 5.5 sec |
| Dump Time | 2 sec |
| Lower Time | 3.5 sec |
