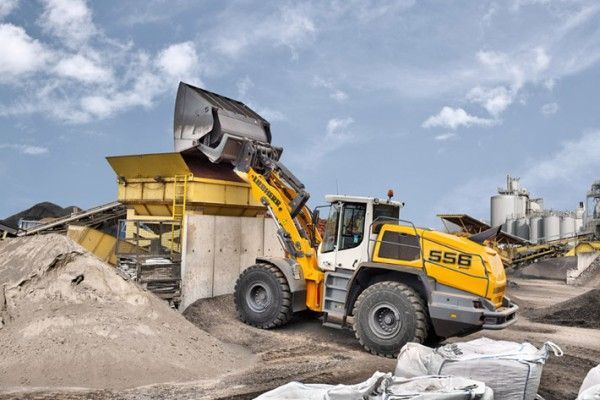

Liebherr L556 XPOWER
Browse All Liebherr or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.4 ft in (2865.12 mm) |
| Arm Length | 8.6 ft in (2621.29 mm) |
| Breakout Force | 29225.17 lb (130 kN) |
| Bucket Capacity - Heaped | 4.3 yd3 (3.29 m3) |
| Bucket Width | 8.1 ft in (2468.88 mm) |
| Digging Depth | 3 ft in (914.4 mm) |
Dimensions
| Ground Clearance | 1.7 ft in (518.16 mm) |
| Length With Bucket On Ground | 28.3 ft in (8625.84 mm) |
| Height To Top Of Cab | 11.1 ft in (3383.28 mm) |
| Wheelbase | 11.2 ft in (3413.76 mm) |
| Hinge Pin - Max Height | 13.4 ft in (4084.32 mm) |
| Reach At Max Lift And Dump | 3.1 ft in (944.88 mm) |
Electrical System
| Alternator | 28/140 (V/A) |
| Voltage | 24 V V (deletedelete) |
| Starter | 24/10.5 (V/HP) |
| Battery | 2 x 180 Ah |
Engine
| Fuel Injection | Electronic Common Rail high-pressure injection |
| Number Of Cylinders | 4 |
| Engine Model | D944 A7 |
| Net Power | 221 hp (164.8 kw) |
| Air Cleaner | Dry type filter with main and safety element, pre-cleaner, service indicator on the Liebherr display |
| Gross Power | 225 hp (167.8 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1055 lb ft |
| Displacement | 486 cu in (8 L) |
| Torque Measured @ | 1100 rpm |
| Aspiration | Water-cooled in-line engine with charge-air cooling, exhaust after-treatment through Liebherr-SCR technology |
| Bore | 5.2 in (130.1 mm) |
| Stroke | 6 in (150.2 mm) |
Operational
| Operating Weight | 40565 lb (18400 kg) |
| Fuel Capacity | 74 gal (280.2 L) |
| Hydraulic System Fluid Capacity | 46.2 gal (174.9 L) |
| Engine Oil Fluid Capacity | 6.9 gal (26.2 L) |
| Cooling System Fluid Capacity | 17.7 gal (67.1 L) |
| Hydraulic Fluid Capacity | 27.7 gal (104.9 L) |
| Front Axle/Diff Fluid Capacity | 11.1 gal (42.1 L) |
| Rear Axle/Diff Fluid Capacity | 9.2 gal (34.9 L) |
| Static Tipping Weight | 30205 lb (13700.8 kg) |
| Turning Radius | 21.1 ft in (6431.3 mm) |
| Tire Size | 23.5R25 L3 |
Hydraulic System
| Max Operating Pressure | 5221 psi |
| Relief Valve Setting | 4351.2 psi (30000 kPa) |
| Pump Flow Capacity | 62 gal/min (234.7 L/min) |
| Raise Time | 5.5 sec |
| Dump Time | 2.3 sec |
| Lower Time | 2.7 sec |
| Pump Type | “Load-sensing” variable axial piston pump with output and flow control, and pressure cut-off in the control block |
