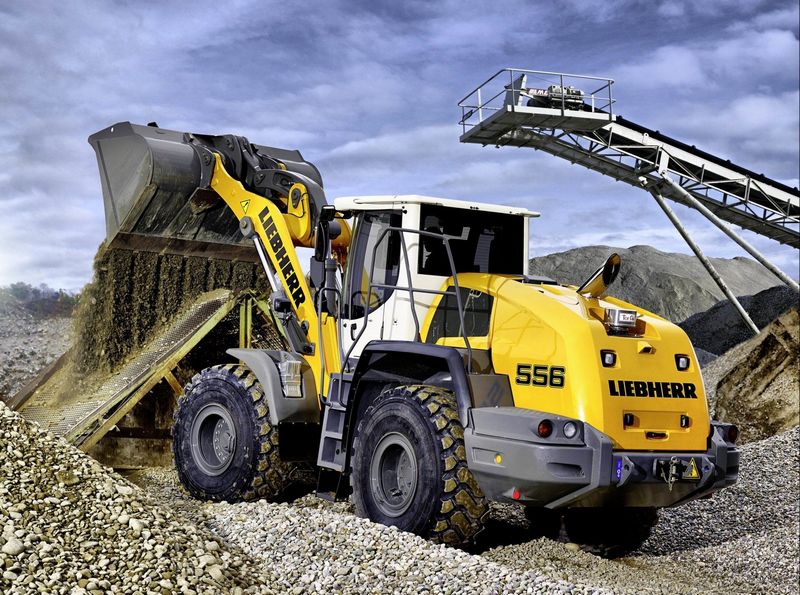

Liebherr L556
Browse All Liebherr or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.4 ft in (2865.12 mm) |
| Arm Length | 8.6 ft in (2621.29 mm) |
| Breakout Force | 33719.1 lb (149.99 kN) |
| Bucket Capacity - Heaped | 4.7 yd3 (3.6 m3) |
| Bucket Width | 8.1 ft in (2468.88 mm) |
| Digging Depth | 3 ft in (914.4 mm) |
Dimensions
| Ground Clearance | 1.7 ft in (518.16 mm) |
| Length With Bucket On Ground | 27.2 ft in (8290.56 mm) |
| Height To Top Of Cab | 11 ft in (3352.8 mm) |
| Wheelbase | 10.1 ft in (3078.48 mm) |
| Hinge Pin - Max Height | 12.1 ft in (3688.08 mm) |
| Reach At Max Lift And Dump | 3.1 ft in (944.88 mm) |
Electrical System
| Alternator | 28/100 (V/A) |
| Voltage | 24 V V (deletedelete) |
| Starter | 24/10.5 (V/HP) |
| Battery | 2 x 140 Ah |
Engine
| Fuel Injection | Electronic Common Rail high-pressure injection |
| Number Of Cylinders | 4 |
| Engine Model | D934 A7 |
| Air Cleaner | Dry air filter with main and safety element, pre-cleaner, service indicator on the display |
| Gross Power | 188 hp (140.2 kw) |
| Power Measured @ | 1500 rpm |
| Max Torque | 632 lb ft |
| Displacement | 428 cu in (7.1 L) |
| Torque Measured @ | 1500 rpm |
| Aspiration | Water-cooled with exhaust turbo charging, externally cooled exhaust gas recirculation and diesel particulate filter |
| Bore | 4.8 in (122 mm) |
| Stroke | 6 in (150.2 mm) |
Operational
| Operating Weight | 39460 lb (17898.8 kg) |
| Fuel Capacity | 79 gal (299.1 L) |
| Hydraulic System Fluid Capacity | 64.7 gal (245 L) |
| Engine Oil Fluid Capacity | 10.6 gal (40.2 L) |
| Cooling System Fluid Capacity | 11.1 gal (42.1 L) |
| Hydraulic Fluid Capacity | 35.7 gal (135.2 L) |
| Transmission Fluid Capacity | 3 gal (11.4 L) |
| Front Axle/Diff Fluid Capacity | 9.2 gal (34.9 L) |
| Rear Axle/Diff Fluid Capacity | 9.2 gal (34.9 L) |
| Static Tipping Weight | 29870 lb (13548.9 kg) |
| Turning Radius | 21.3 ft in (6492.3 mm) |
| Tire Size | 23.5R25 L3 |
Transmission
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 24.9 mph (40.1 km/h) |
| Max Speed - Reverse | 24.9 mph (40.1 km/h) |
Hydraulic System
| Max Operating Pressure | 5221 psi |
| Relief Valve Setting | 4351.2 psi (30000 kPa) |
| Pump Flow Capacity | 62 gal/min (234.7 L/min) |
| Raise Time | 5.5 sec |
| Dump Time | 2.3 sec |
| Lower Time | 2.7 sec |
| Pump Type | “Load-sensing” variable axial piston pump with output and flow control, and pressure cut-off in the control block |
