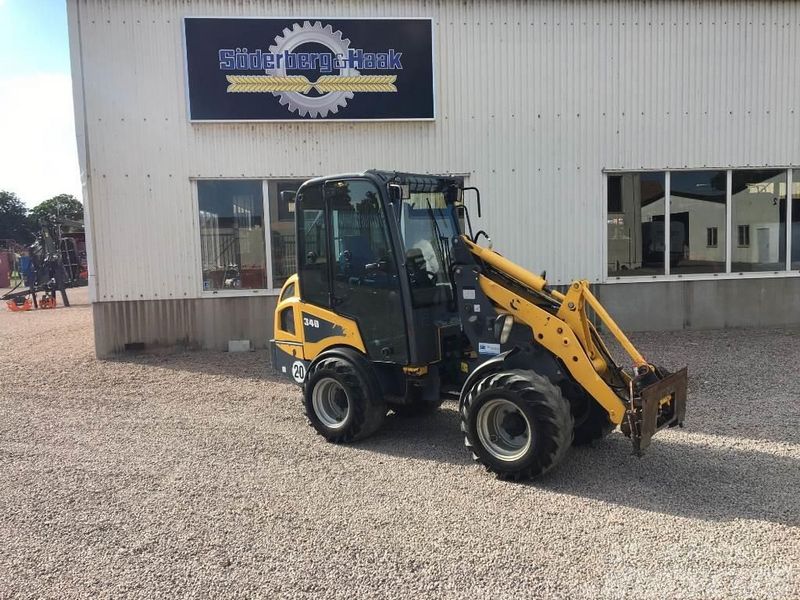

Gehl 340
Browse All Gehl or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 7.04 ft in (2144 mm) |
| Bucket Width | 4.51 ft in (1372 mm) |
Dimensions
| Ground Clearance | 0.81 ft in (244 mm) |
| Length With Bucket On Ground | 13.29 ft in (4049 mm) |
| Width Over Tires | 4.2 ft in (1280 mm) |
| Height To Top Of Cab | 7.41 ft in (2258 mm) |
| Wheelbase | 5.35 ft in (1628 mm) |
| Hinge Pin - Max Height | 9.37 ft in (2855 mm) |
| Reach At Max Lift And Dump | 1.03 ft in (312 mm) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2348 |
| Engine Model | 3TNV88 |
| Net Power | 35 hp (26.1 kw) |
| Power Measured @ | 2800 rpm |
| Displacement | 100.2 cu in (1.7 L) |
Operational
| Operating Weight | 5840.1 lb (2649 kg) |
| Fuel Capacity | 15.1 gal (57 L) |
| Hydraulic System Fluid Capacity | 6.9 gal (26 L) |
| Static Tipping Weight | 3794.2 lb (1721 kg) |
| Turning Radius | 9.9 ft in (3000 mm) |
| Operating Voltage | 12 V |
| Tire Size | 30.5x12.5-16.5 |
Transmission
| Max Speed - Forward | 11.5 mph (18.6 km/h) |
| Max Speed - Reverse | 11.5 mph (18.6 km/h) |
Hydraulic System
| Relief Valve Setting | 5000 psi (34473.8 kPa) |
| Pump Flow Capacity | 20.9 gal/min (79 L/min) |
