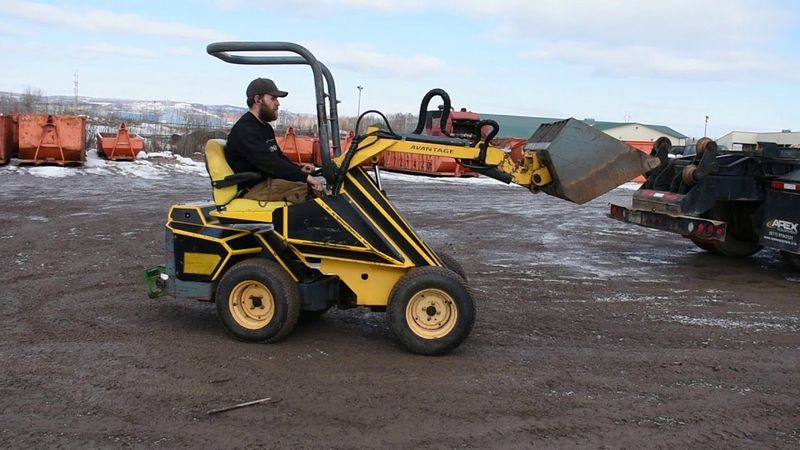

Gehl AVANTAGE
Browse All Gehl or Wheel Loader Models
Contents:
Bucket
| Bucket Width | 3.42 ft in (1041 mm) |
Dimensions
| Ground Clearance | 0.66 ft in (200 mm) |
| Width Over Tires | 3.34 ft in (1016 mm) |
| Height To Top Of Cab | 6.5 ft in (1980 mm) |
| Wheelbase | 3.58 ft in (1090 mm) |
| Hinge Pin - Max Height | 7.96 ft in (2425 mm) |
| Reach At Max Lift And Dump | 2.62 ft in (798 mm) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2334 |
| Gross Power | 20 hp (15 kw) |
Operational
| Operating Weight | 2050 lb (929.9 kg) |
| Fuel Capacity | 4.9 gal (18.2 L) |
| Hydraulic System Fluid Capacity | 7.9 gal (29.9 L) |
| Engine Oil Fluid Capacity | 1.1 gal (3.8 L) |
| Static Tipping Weight | 1400 lb (635.1 kg) |
| Turning Radius | 6.6 ft in (2010 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 20 amps |
Transmission
| Max Speed - Forward | 6.9 mph (11 km/h) |
Hydraulic System
| Relief Valve Setting | 2900 psi (19994.8 kPa) |
| Pump Flow Capacity | 10.6 gal/min (40 L/min) |
