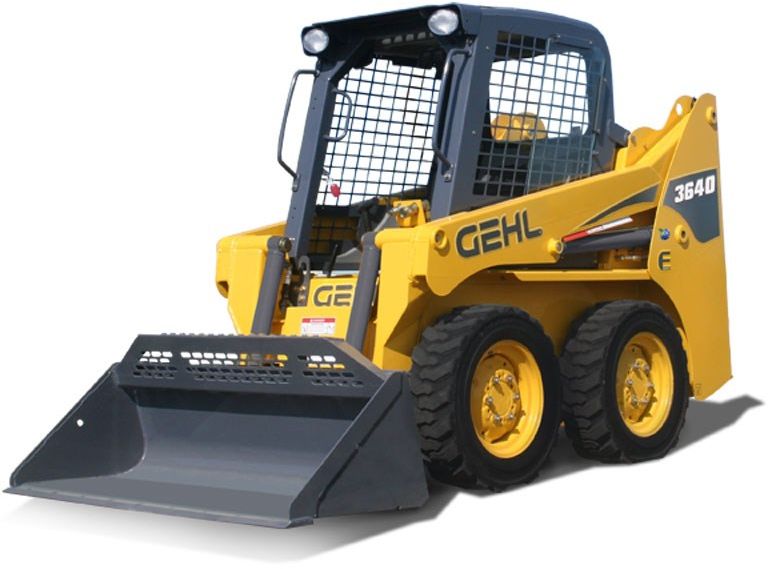

Gehl 3640E
Browse All Gehl or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 9.51 ft in (2896 mm) |
| Width Over Tires | 4.04 ft in (1229 mm) |
| Ground Clearance | 5.99 in (152 mm) |
| Height To Top Of Cab | 5.86 ft in (1786 mm) |
| Wheelbase | 2.88 ft in (876 mm) |
| Length W/O Bucket | 7.41 ft in (2258 mm) |
| Clearance At Max Lift And Dump | 7.05 ft in (2146 mm) |
| Reach At Max Lift And Dump | 22.8 in (579 mm) |
| Turning Radius From Center - Machine Rear | 27.05 in (687 mm) |
| Turning Radius From Center - Inc Bucket | 34.71 in (881.5 mm) |
Engine
| Engine Make | 2348 |
| Engine Model | 3TNV88 |
| Net Power | 35 hp (26.1 kw) |
| Power Measured @ | 2600 rpm |
| Displacement | 100.1 cu in (1.7 L) |
Operational
| Operational Weight | 4000 lb (1814.4 kg) |
| Fuel Capacity | 10.3 gal (38.9 L) |
| Hydraulic System Fluid Capacity | 8.1 gal (30.3 L) |
| Max Speed | 6.8 mph (10.9 km/h) |
| Tire Size | 27x8.5x15 HD |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
Loader
| Operating Load Rating | 1050 lb (476.3 kg) |
| Tipping Angle | 2100 degrees |
| Bucket Capacity | 0.5 yd3 (0.4 m3) |
Hydraulic
| Pump Flow Capacity | 14.5 gal/min (54.9 L/min) |
