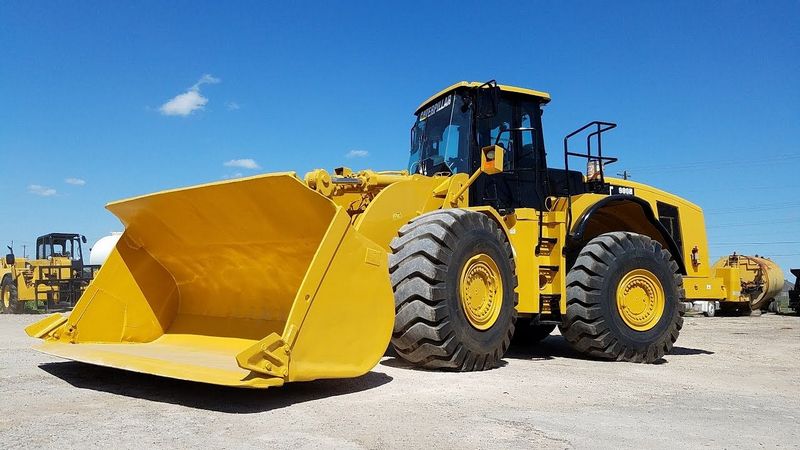

Caterpillar 980H
Browse All Caterpillar or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.83 ft in (3305 mm) |
| Breakout Force | 61425 lb (273 kN) |
| Bucket Width | 11.59 ft in (3533 mm) |
| Bucket Capacity - Heaped | 5.5 yd3 (4.2 m3) |
| Bucket Capacity - Struck | 4.78 yd3 (3.66 m3) |
Dimensions
| Ground Clearance | 1.45 ft in (441.96 mm) |
| Length With Bucket On Ground | 31.08 ft in (9480 mm) |
| Width Over Tires | 10.58 ft in (3227 mm) |
| Height To Top Of Cab | 12.35 ft in (3765 mm) |
| Wheelbase | 12.17 ft in (3700 mm) |
| Hinge Pin - Max Height | 14.78 ft in (4505 mm) |
| Reach At Max Lift And Dump | 5.08 ft in (1554 mm) |
| Height - Top Of Exhaust Pipe | 146.28 in (3715.52 mm) |
| Centerline Of Rear Axle To Hitch | 72.84 in (1850.14 mm) |
| Centerline Rear Axle To Edge Of Counterweight | 8.18 ft in (2.5 m) |
| B-Pin Height - Standard | 14.78 ft in (4.51 m) |
| Height - Top Of Hood | 106.92 in (2715.77 mm) |
| Height - Top Of Rops | 12.35 ft in (3.77 m) |
| Wheel Base | 12.14 ft in (3.71 m) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2236 |
| Engine Model | C15 ACERT |
| Net Power | 318 hp (237 kw) |
| Gross Power | 355 hp (264 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1191 lb ft (1615 Nm) |
| Displacement | 928 cu in (15.3 L) |
| Bore | 5.4 in (137.2 mm) |
| Stroke | 6.8 in (171.5 mm) |
| Net Power - Iso 9249 | 349 hp (260.3 kw) |
| Net Power - Sae J1349 | 349 hp (260.3 kw) |
| Net Power - 80/1269/Eec | 353 hp (263.3 kw) |
| Gross Power - Sae J1995 | 393 hp (293.1 kw) |
| Engine Model | Cat? C15 ACERT? |
| Peak Torque - 1,200 Rpm - Net | 1244 lb ft (1686.7 Nm) |
Operational
| Operating Weight | 66489.3 lb (30159 kg) |
| Fuel Capacity | 127 gal (479 L) |
| Hydraulic System Fluid Capacity | 66 gal (250 L) |
| Engine Oil Fluid Capacity | 10 gal (37.9 L) |
| Cooling System Fluid Capacity | 22 gal (83 L) |
| Transmission Fluid Capacity | 16 gal (62 L) |
| Front Axle/Diff Fluid Capacity | 23 gal (87 L) |
| Rear Axle/Diff Fluid Capacity | 23 gal (87 L) |
| Static Tipping Weight | 50201 lb (22767 kg) |
| Turning Radius | 26.1 ft in (7962 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Rear Axle Oscillation | 26 degrees |
| Tire Size | 29.5-25 |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 22.6 mph (36.3 km/h) |
| Max Speed - Reverse | 25.8 mph (41.5 km/h) |
| Forward - 1 | 4.1 mph (6.6 km/h) |
| Forward - 2 | 7.3 mph (11.8 km/h) |
| Forward - 3 | 12.9 mph (20.8 km/h) |
| Forward - 4 | 22.6 mph (36.4 km/h) |
| Reverse - 1 | 4.7 mph (7.6 km/h) |
| Reverse - 2 | 8.4 mph (13.6 km/h) |
| Reverse - 3 | 14.7 mph (23.7 km/h) |
| Reverse - 4 | 25.8 mph (41.6 km/h) |
Weights
| Operating Weight | 67294 lb (30524.1 kg) |
Tires
| Tires | Choose from a variety of tires to match your application. |
Buckets
| Maximum Bucket Capacity | 8 yd3 (6.2 m3) |
| Bucket Capacities | 3.8-6.1 m? 5.0-8.0 yd? |
| Bucket Width | 11.6 ft in (3.6 m) |
| Capacity - Reference Bucket | 5.5 yd3 (4.2 m3) |
| Type - Reference Bucket | GP with teeth |
| Breakout Force - Reference Bucket | 61372.9 lb (27838.3 kg) |
Hydraulic System
| Relief Valve Setting | 3000 psi (20700 kPa) |
| Pump Flow Capacity | 123 gal/min (464 L/min) |
| Raise Time | 6 sec |
| Dump Time | 2.1 sec |
| Lower Time | 3.4 sec |
Axles
| Front | Fixed front |
| Rear | Oscillating +/- 13? |
Hydraulic System
| Pump Type | Gear |
Axles
| Maximum Single-Wheel Rise And Fall | 21.7 in (551.2 mm) |
Hydraulic System
| Hydraulic Cycle Time - Total | 11.5 s |
| Hydraulic Cycle Time - Lower, Empty, Float Down | 3.4 s |
| Hydraulic Cycle Time - Raise | 6 s |
| Pilot System - Pump Output | 122.58 gal/min |
| Bucket/Work Tool System - Relief Valve Setting | 3000 psi |
| Hydraulic Cycle Time - Dump | 2.1 s |
| Bucket/Work Tool System - Pump Output | 123 gal/min |
Brakes
| Brakes | Meets required standards. |
Operating Specifications
| Static Tipping Load - Full Turn | 42989 lb (19499.5 kg) |
| Dump Clearance | 10843.2 ft in (3305 m) |
| Breakout Force | 44775 lb (20309.6 kg) |
Service Refill Capacities
| Cooling System | 22 gal (83.3 L) |
| Crankcase | 17 gal (64.4 L) |
| Hydraulic Tank | 33 gal (125 L) |
| Hydraulic System - Including Tank | 66 gal (249.9 L) |
| Fuel Tank - Standard | 127 gal (480.8 L) |
| Transmission | 16 gal (60.6 L) |
| Differential - Final Drives - Front | 23 gal (87.1 L) |
| Differential - Final Drives - Rear | 23 gal (87.1 L) |
Cab
| Rops/Fops | Meets SAE and ISO standards. |
