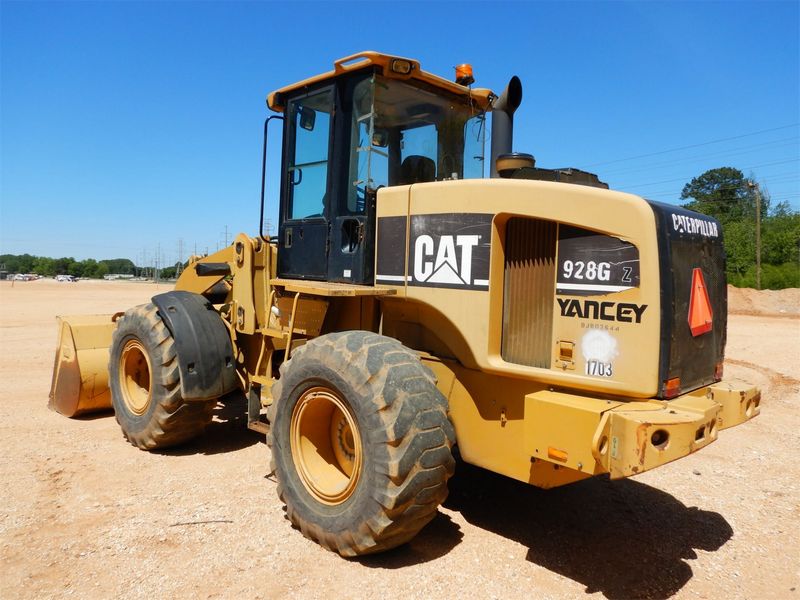

Caterpillar 928Gz
Browse All Caterpillar or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.45 ft in (2879 mm) |
| Bucket Capacity - Heaped | 2.62 yd3 (2 m3) |
| Bucket Capacity - Struck | 2.23 yd3 (1.7 m3) |
| Breakout Force | _ - (117 kN) |
| Bucket Width | 8.37 ft in (2549 mm) |
Dimensions
| Ground Clearance | 1.4 ft in (426.72 mm) |
| Length With Bucket On Ground | 23.8 ft in (7252 mm) |
| Width Over Tires | 8.22 ft in (2504 mm) |
| Height To Top Of Cab | 10.73 ft in (3269 mm) |
| Wheelbase | 9.52 ft in (2900 mm) |
| Hinge Pin - Max Height | 12.71 ft in (3872 mm) |
| Reach At Max Lift And Dump | 9.45 ft in (2879 mm) |
| Carry Height | 3 ft in (0.92 m) |
| Height - Center Of Axle | 2.3 ft in (0.71 m) |
| Height - Top Of Exhaust Stack | 10.6 ft in (3.24 m) |
| Height - Top Of Hood | 87.6 in (2225.04 mm) |
| Height - Top Of Rops/Fops | 10.8 ft in (3.3 m) |
| Length - Rear Axle To Bumper | 6.4 ft in (1.96 m) |
| Bucket Pin Height - Maximum Lift | 12.4 ft in (3.78 m) |
| Overall Height | 16.4 ft in (4998.72 mm) |
| Overall Height - Bucket Raised | 16.4 ft in (5 m) |
| Overall Length | 23.1 ft in (7040.88 mm) |
| Rack Back Angle - Carry | 47.8 degrees |
| Rack Back Angle - Ground | 44 degrees |
| Rack Back Angle - Maximum Lift | 58 degrees |
| Reach At Maximum Lift And 45 Degrees Dump | 3 ft in (0.92 m) |
| Wheel Base | 9.6 ft in (2.93 m) |
| Wheel Base Length | 9.6 ft in (2.93 m) |
| Width - Over Tires | 6.4 ft in (1.96 m) |
| Digging Depth | 3.4 in (86.36 mm) |
| Bucket Clearance-Maximum Lift/Carry | 12.4 ft in (3.78 m) |
| Dump Angle At Maximum Lift | 45 degrees |
| Centerline Of Front Axle To Hitch | 4.91 ft in (1.5 m) |
| Dump Clearance At Maximum Lift - 45 Degrees | 9.5 ft in (2.9 m) |
Engine
| Engine Make | 2236 |
| Engine Model | 3056E DIT ATAAC |
| Net Power | 144.9 hp (108 kw) |
| Gross Power | 156.9 hp (117 kw) |
| Power Measured @ | 2300 rpm |
| Displacement | 366 cu in (6 L) |
| Bore | 4 in (100.1 mm) |
| Stroke | 5 in (127 mm) |
| Rated Net Power | 143 hp (106.7 kw) |
| Sae J1349 (2) | 155 hp (115.6 kw) |
| Iso 9249 (1997) (2) | 156 hp (116.4 kw) |
| Eec 80/1269 (2) | 156 hp (116.4 kw) |
| Sae J1349 (1) | 143 hp (106.7 kw) |
| Iso 9249 (1997) (1) | 145 hp (108.2 kw) |
| Eec 80/1269 (1) | 145 hp (108.2 kw) |
| Maximum Net Power - 2000 Rpm | 155 hp (115.6 kw) |
Operational
| Operating Weight | 27134.5 lb (12308 kg) |
| Fuel Capacity | 59.5 gal (225 L) |
| Hydraulic System Fluid Capacity | 33.1 gal (125 L) |
| Engine Oil Fluid Capacity | 4.3 gal (16 L) |
| Cooling System Fluid Capacity | 11.1 gal (42 L) |
| Transmission Fluid Capacity | 9.2 gal (34.5 L) |
| Front Axle/Diff Fluid Capacity | 6.9 gal (26 L) |
| Rear Axle/Diff Fluid Capacity | 6.7 gal (25 L) |
| Static Tipping Weight | 21735.4 lb (9859 kg) |
| Turning Radius | 17.2 ft in (5233 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Rear Axle Oscillation | 11 degrees |
| Tire Size | 20.5-25 R25 |
Transmission
| Transmission Type | countershaft |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 23.7 mph (38 km/h) |
| Max Speed - Reverse | 16.2 mph (26 km/h) |
| Forward - 1 | 4.9 mph (7.9 km/h) |
| Reverse - 1 | 4.9 mph (7.9 km/h) |
Steering
| Steering Angle - Each Direction | 40 degrees |
| Minimum Turning Radius - Over Tires | 206 in (5232.4 mm) |
| Steering Cylinder, Two, Bore | 2.8 in (69.9 mm) |
| Hydraulic Output At 2300 Engine Rpm And 6900 Kpa (1000 Psi) | 27 gal/min |
| Maximum Working Pressure | 3000 psi |
| Steering Articulation | 40 degrees |
Transmission
| 2 | 7.8 mph (12.6 km/h) |
| 3 | 16 mph (25.8 km/h) |
| 4 | 23.4 mph (37.7 km/h) |
Weights
| Operating Weight | 27140 lb (12310.5 kg) |
Tires
| Tread Width | 96 ft in (29.3 m) |
| Size | 17.5-25PR (L-2) |
Weights
| Optional Counterweight | 654.8 lb (297 kg) |
Buckets
| Bucket Capacities | 2.0 m3 - 2.3 m3 2.6 yd3 - 3.0 yd3 |
| Bucket Width | 8.4 ft in (2.6 m) |
| Capacity - Reference Bucket | 2.7 yd3 (2.1 m3) |
| Type - Reference Bucket | GP |
| Breakout Force - Reference Bucket | 25844 lb (11722.7 kg) |
Hydraulic System
| Relief Valve Setting | 3597 psi (24800 kPa) |
| Pump Flow Capacity | 40.2 gal/min (152 L/min) |
| Raise Time | 6.1 sec |
| Dump Time | 1.2 sec |
| Lower Time | 2.8 sec |
| Pump Type | fixed displacement vane-type implement pump |
Axles
| Axle Oscillation | 11 degrees |
Operating Specifications
| Static Tipping Load - Full Turn | 18931.1 lb (8587 kg) |
| Breakout Force | 25844 lb (11722.7 kg) |
| Articulation Angle | 40 degrees |
| Reach - Full Lift And 45 Degrees Dump | 3 ft in (1 m) |
| Dump Clearance At Full Lift And 45 Degrees Dump Angle | 9.5 ft in (2.9 m) |
Service Refill Capacities
| Cooling System | 11.1 gal (42.1 L) |
| Fuel Tank | 59.4 gal (224.9 L) |
| Crankcase | 3.7 gal (14.1 L) |
| Hydraulic Tank | 18.5 gal (70.1 L) |
| Hydraulic System - Including Tank | 33 gal (125 L) |
| Transmission | 9.1 gal (34.5 L) |
| Front | 6.9 gal (26.2 L) |
| Rear | 6.6 gal (25 L) |
Cab
| Rops | SAE J1040 MAY94, ISO 3471-1994 |
| Fops | SAE J/ISO 3449 APR98 Level II, ISO 3449-1992 Level II |
Loader Hydraulic System
| Relief Valve Setting | 3600 psi |
| Pump Flow - Implement Pump | 40.15 gal/min |
| Output At 2,300 Engine Rpm And 6900 Kpa (1000 Psi) With Sae 10w Oil At 65 Degreesc (150 Degreesf) | 40.3 gal/min |
| Raise | 6.1 s |
| Dump | 1.2 s |
| Lower, Empty, Float Down | 2.8 s |
| Total | 10.1 s |
| Bore (1) | 4.8 in (120.7 mm) |
| Stroke (1) | 27 in (685.8 mm) |
| Bore (2) | 5 in (127 mm) |
| Stroke (2) | 21.7 in (551.2 mm) |
| Hydraulic Cycle Time | 10.1 s |
