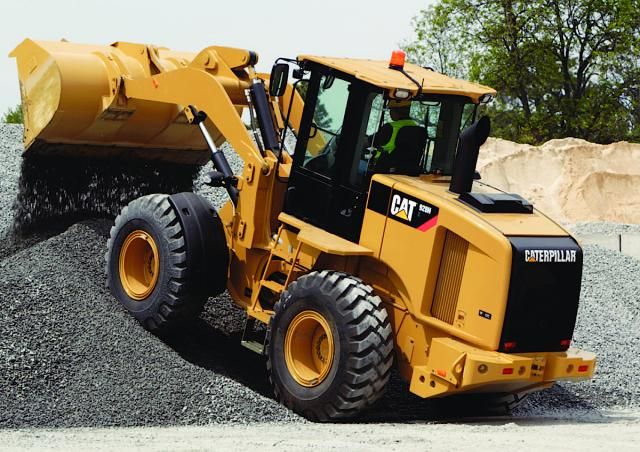

Caterpillar 928Hz
Browse All Caterpillar or Wheel Loader Models
Contents:
Dimensions
| Ground Clearance | 1.34 ft in (408.44 mm) |
| Bucket Pin Height - Maximum Lift | 12.7 ft in (3.88 m) |
| Carry Height | 1.47 ft in (0.45 m) |
| Centerline Of Front Axle To Hitch | 4.76 ft in (1.46 m) |
| Digging Depth | 3.39 in (86.11 mm) |
| Dump Angle At Maximum Lift | 45 degrees |
| Dump Clearance At Maximum Lift - 45 Degrees | 9.45 ft in (2.89 m) |
| Height - Center Of Axle | 2.25 ft in (0.69 m) |
| Height - Top Of Exhaust Stack | 10.46 ft in (3.19 m) |
| Height - Top Of Hood | 86.52 in (2197.61 mm) |
| Height - Top Of Rops/Fops | 10.73 ft in (3.28 m) |
| Length - Rear Axle To Bumper | 6.3 ft in (1.93 m) |
| Overall Height - Bucket Raised | 16.31 ft in (4.98 m) |
| Overall Length | 23.79 ft in (7251.2 mm) |
| Rack Back Angle - Carry | 47.8 degrees |
| Rack Back Angle - Ground | 44 degrees |
| Rack Back Angle - Maximum Lift | 60 degrees |
| Reach At Maximum Lift And 45 Degrees Dump | 3.04 ft in (0.93 m) |
| Wheel Base | 9.51 ft in (2.9 m) |
| Bucket Clearance-Maximum Lift/Carry | 12.31 ft in (3.76 m) |
| Width - Over Tires | 8.43 ft in (2.57 m) |
Engine
| Displacement | 403 cu in (6.7 L) |
| Net Torque | 536 lb ft (726.8 Nm) |
| Peak Torque | 547 lb ft (741.7 Nm) |
| Bore | 4.2 in (105 mm) |
| Stroke | 5 in (127 mm) |
| Rated Net Power | 149 hp (111.2 kw) |
| Sae J1349 (2) | 160 hp (119.4 kw) |
| Iso 9249 (1997) (2) | 161 hp (120.1 kw) |
| Eec 80/1269 (2) | 161 hp (120.1 kw) |
| Sae J1349 (1) | 149 hp (111.2 kw) |
| Iso 9249 (1997) (1) | 150 hp (111.9 kw) |
| Eec 80/1269 (1) | 150 hp (111.9 kw) |
| Maximum Net Power - 2000 Rpm | 160 hp (119.4 kw) |
Operational
| Operating Weight | 27699 lb (12564.1 kg) |
Transmission
| Forward - 1 | 4.9 mph (7.9 km/h) |
| Reverse - 1 | 4.9 mph (7.9 km/h) |
Steering
| Steering Angle - Each Direction | 40 degrees |
| Minimum Turning Radius - Over Tires | 206 in (5232.4 mm) |
| Steering Cylinder, Two, Bore | 2.8 in (69.9 mm) |
| Hydraulic Output At 2300 Engine Rpm And 6900 Kpa (1000 Psi) | 27 gal/min |
| Maximum Working Pressure | 3000 psi |
| Steering Articulation | 40 degrees |
Transmission
| 2 | 7.8 mph (12.6 km/h) |
| 3 | 16 mph (25.8 km/h) |
| 4 | 23.4 mph (37.7 km/h) |
| Standard Transmission Maximum Travel Speeds | 23.4 mph (37.7 km/h) |
Tires
| Tread Width | 8.5 ft in (2.6 m) |
| Size | 20.5 R25 L3 XHA |
Buckets
| Bucket Capacities | 2.0 m3 - 2.3 m3 2.6 yd3 - 3.0 yd3 |
Operating Specifications
| Static Tipping Load - Full Turn | 19089 lb (8658.7 kg) |
| Articulation Angle | 40 degrees |
| Reach - Full Lift And 45 Degrees Dump | 3 ft in (1 m) |
| Dump Clearance At Full Lift And 45 Degrees Dump Angle | 9.5 ft in (2.9 m) |
Service Refill Capacities
| Cooling System | 11.1 gal (42.1 L) |
| Fuel Tank | 59.4 gal (224.9 L) |
| Crankcase | 4 gal (15.2 L) |
| Hydraulic Tank | 18.5 gal (70.1 L) |
| Hydraulic System - Including Tank | 33 gal (125 L) |
| Transmission | 9.1 gal (34.5 L) |
| Front | 6.9 gal (26.2 L) |
| Rear | 6.6 gal (25 L) |
Cab
| Rops | SAE J1040 MAY94, ISO 3471-1994 |
| Fops | SAE J/ISO 3449 APR98 Level II, ISO 3449-1992 Level II |
Loader Hydraulic System
| Pump Flow - Implement Pump | 40.2 gal/min |
| Output At 2,300 Engine Rpm And 6900 Kpa (1000 Psi) With Sae 10w Oil At 65 Degreesc (150 Degreesf) | 40.3 gal/min |
| Maximum Working Pressure | 3755 psi |
| Raise | 6.1 s |
| Dump | 1.2 s |
| Lower, Empty, Float Down | 2.8 s |
| Total | 10.1 s |
| Bore (1) | 4.8 in (120.7 mm) |
| Stroke (1) | 27 in (685.8 mm) |
| Bore (2) | 5 in (127 mm) |
| Stroke (2) | 21.7 in (551.2 mm) |
| Hydraulic Cycle Time | 10.1 Seconds |
| Relief Pressure - Implement Pump | 3755 psi |
