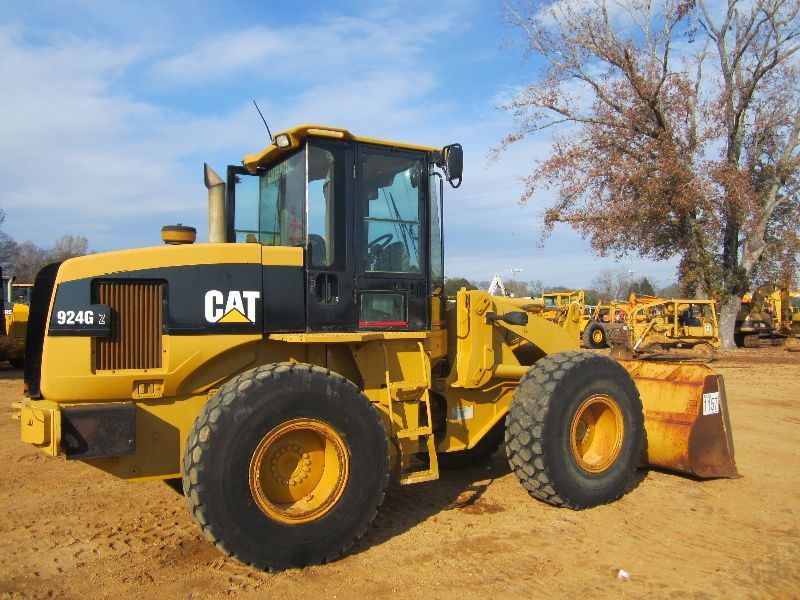

Caterpillar 924Gz
Browse All Caterpillar or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.06 ft in (2760 mm) |
| Bucket Capacity - Heaped | 1.97 yd3 (1.5 m3) |
| Breakout Force | 21727 lb (96.65 kN) |
| Bucket Width | 8.37 ft in (2550 mm) |
Dimensions
| Ground Clearance | 1.2 ft in (365.76 mm) |
| Length With Bucket On Ground | 23.07 ft in (7030 mm) |
| Width Over Tires | 7.73 ft in (2356 mm) |
| Height To Top Of Cab | 10.6 ft in (3228 mm) |
| Wheelbase | 9.19 ft in (2800 mm) |
| Hinge Pin - Max Height | 12.34 ft in (3759 mm) |
| Reach At Max Lift And Dump | 2.84 ft in (865 mm) |
| Carry Height | 1.2 ft in (0.37 m) |
| Height - Center Of Axle | 2.1 ft in (0.65 m) |
| Height - Top Of Exhaust Stack | 10.4 ft in (3.17 m) |
| Height - Top Of Hood | 85.2 in (2164.08 mm) |
| Height - Top Of Rops/Fops | 10.5 ft in (3.21 m) |
| Length - Rear Axle To Bumper | 6.4 ft in (1.96 m) |
| Bucket Pin Height - Maximum Lift | 12.1 ft in (3.69 m) |
| Overall Height | 15.7 ft in (4785.36 mm) |
| Overall Height - Bucket Raised | 15.7 ft in (4.79 m) |
| Overall Length | 23.1 ft in (7040.88 mm) |
| Rack Back Angle - Carry | 48 degrees |
| Rack Back Angle - Ground | 44 degrees |
| Rack Back Angle - Maximum Lift | 58 degrees |
| Reach At Maximum Lift And 45 Degrees Dump | 2.1 ft in (0.65 m) |
| Wheel Base | 9.19 ft in (2.81 m) |
| Wheel Base Length | 9.2 ft in (2.81 m) |
| Width - Over Tires | 7.9 ft in (2.41 m) |
| Digging Depth | 4 in (101.6 mm) |
| Bucket Clearance-Maximum Lift/Carry | 11.1 ft in (3.39 m) |
| Dump Angle At Maximum Lift | 45 degrees |
| Centerline Of Front Axle To Hitch | 4.7 ft in (1.44 m) |
| Dump Clearance At Maximum Lift - 45 Degrees | 9.1 ft in (2.78 m) |
Engine
| Engine Model | 3056T |
| Net Power | 130 hp (97 kw) |
| Gross Power | 138 hp (103 kw) |
| Power Measured @ | 2300 rpm |
| Displacement | 366 cu in (6 L) |
| Bore | 4 in (100.1 mm) |
| Stroke | 5 in (127 mm) |
| Rated Net Power | 129 hp (96.2 kw) |
| Sae J1349 (2) | 137 hp (102.2 kw) |
| Iso 9249 (1997) (2) | 138 hp (103 kw) |
| Eec 80/1269 (2) | 138 hp (103 kw) |
| Sae J1349 (1) | 129 hp (96.2 kw) |
| Iso 9249 (1997) (1) | 130 hp (97 kw) |
| Eec 80/1269 (1) | 130 hp (97 kw) |
Operational
| Operating Weight | 23920.2 lb (10850 kg) |
| Fuel Capacity | 59.5 gal (225 L) |
| Hydraulic System Fluid Capacity | 33.1 gal (125 L) |
| Engine Oil Fluid Capacity | 5.3 gal (20 L) |
| Cooling System Fluid Capacity | 10.6 gal (40 L) |
| Transmission Fluid Capacity | 6.1 gal (23 L) |
| Front Axle/Diff Fluid Capacity | 5.6 gal (21 L) |
| Rear Axle/Diff Fluid Capacity | 5.6 gal (21 L) |
| Turning Radius | 16.7 ft in (5070 mm) |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 24.3 mph (39 km/h) |
| Max Speed - Reverse | 13.5 mph (21.6 km/h) |
Steering
| Steering Angle - Each Direction | 40 degrees |
| Minimum Turning Radius - Over Tires | 200 in (5080 mm) |
| Steering Cylinder, Two, Bore | 2.8 in (69.9 mm) |
| Hydraulic Output At 2300 Engine Rpm And 6900 Kpa (1000 Psi) | 27.7 gal/min |
| Maximum Working Pressure | 3000 psi |
Transmission
| Forward - 1 (1) | 4.2 mph (6.8 km/h) |
| Reverse - 1 (1) | 4.2 mph (6.8 km/h) |
| Forward - 1 (2) | 2.3 mph (3.8 km/h) |
| 2 (2) | 4.7 mph (7.6 km/h) |
| 3 (2) | 12.2 mph (19.7 km/h) |
| 4 (2) | 24.2 mph (39 km/h) |
| Reverse - 1 (2) | 2.5 mph (4.1 km/h) |
| 2 (3) | 5 mph (8.1 km/h) |
| 3 (3) | 13.2 mph (21.3 km/h) |
| 2 (1) | 7.6 mph (12.3 km/h) |
| 3 (1) | 13.5 mph (21.8 km/h) |
| 4 (1) | 23.9 mph (38.5 km/h) |
Weights
| Operating Weight | 23920 lb (10850 kg) |
Tires
| Tread Width | 6.2 ft in (1.9 m) |
| Size | 17.5-25PR (L-2) |
Buckets
| Bucket Capacities | 1.7 m3 - 2.1 m3 2.2 yd3 - 2.7 yd3 |
Hydraulic System
| Relief Valve Setting | 3756.5 psi (25900 kPa) |
| Pump Flow Capacity | 40.2 gal/min (152 L/min) |
| Raise Time | 5.5 sec |
| Dump Time | 1.2 sec |
| Lower Time | 2.7 sec |
| Pump Type | load sensing hydraulic |
Axles
| Axle Oscillation | 12 degrees |
Operating Specifications
| Static Tipping Load - Full Turn | 15163 lb (6877.9 kg) |
| Breakout Force | 21727 lb (9855.3 kg) |
| Articulation Angle | 40 degrees |
| Reach - Full Lift And 45 Degrees Dump | 2.1 ft in (0.7 m) |
| Dump Clearance At Full Lift And 45 Degrees Dump Angle | 9.1 ft in (2.8 m) |
| Bucket Capacity - With Bolt-On Cutting Edge | 2 yd3 (1.6 m3) |
Service Refill Capacities
| Cooling System | 10.9 gal (41.3 L) |
| Fuel Tank | 59.4 gal (224.9 L) |
| Crankcase | 4.2 gal (15.9 L) |
| Hydraulic Tank | 18.5 gal (70.1 L) |
| Hydraulic System - Including Tank | 33 gal (125 L) |
| Transmission | 6.1 gal (23.1 L) |
| Front | 5.5 gal (20.9 L) |
| Rear | 5.5 gal (20.9 L) |
Cab
| Rops | SAE J1040 MAY94, ISO 3471-1994 |
| Fops | SAE J231 JAN81, ISO 3449-1992 Level II |
Loader Hydraulic System
| Pump Flow - Implement Pump | 40.15 gal/min |
| Output At 2,300 Engine Rpm And 6900 Kpa (1000 Psi) With Sae 10w Oil At 65 Degreesc (150 Degreesf) | 39.5 gal/min |
| Maximum Working Pressure | 3755 psi |
| Raise | 5.2 s |
| Dump | 1.1 s |
| Lower, Empty, Float Down | 2.7 s |
| Total | 9 s |
| Bore (1) | 4.3 in (108 mm) |
| Stroke (1) | 29.7 in (754.4 mm) |
| Bore (2) | 4.8 in (120.7 mm) |
| Stroke (2) | 20.5 in (520.7 mm) |
