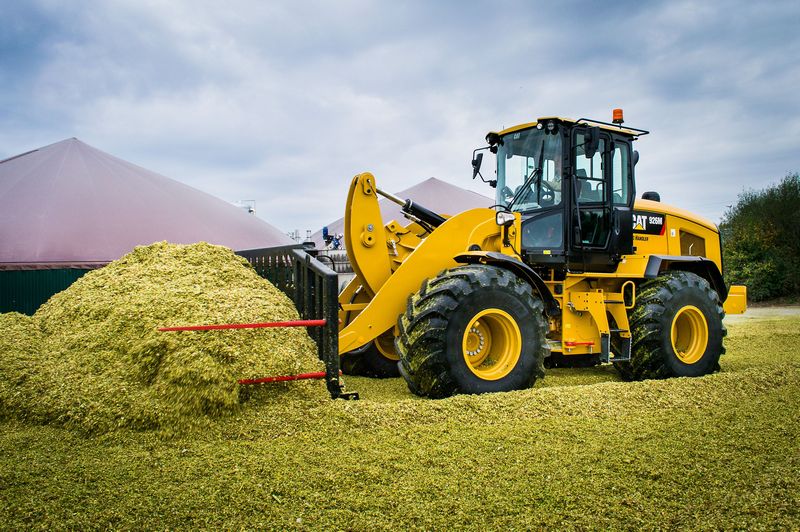

Caterpillar 926
Browse All Caterpillar or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.1 ft in (2772 mm) |
| Bucket Capacity - Heaped | 1.97 yd3 (1.5 m3) |
| Bucket Capacity - Struck | 1.8 yd3 (1.37 m3) |
| Bucket Width | 7.78 ft in (2370 mm) |
| Breakout Force | 24234.41 lb (107.8 kN) |
Dimensions
| Ground Clearance | 0.95 ft in (288 mm) |
| Length With Bucket On Ground | 21.65 ft in (6598 mm) |
| Width Over Tires | 7.63 ft in (2325 mm) |
| Height To Top Of Cab | 10.42 ft in (3175 mm) |
| Wheelbase | 9.42 ft in (2870 mm) |
| Hinge Pin - Max Height | 11.83 ft in (3605 mm) |
| Reach At Max Lift And Dump | 3.24 ft in (985 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2236 |
| Engine Model | 3204 |
| Net Power | 104.6 hp (78 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 317.4 cu in (5.2 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 20498.6 lb (9298 kg) |
| Fuel Capacity | 39.7 gal (150 L) |
| Hydraulic System Fluid Capacity | 24.4 gal (92 L) |
| Engine Oil Fluid Capacity | 3.7 gal (14 L) |
| Transmission Fluid Capacity | 9 gal (34 L) |
| Front Axle/Diff Fluid Capacity | 6.7 gal (25 L) |
| Rear Axle/Diff Fluid Capacity | 6.7 gal (25 L) |
| Static Tipping Weight | 15220.8 lb (6904 kg) |
| Turning Radius | 16.8 ft in (5105 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
| Rear Axle Oscillation | 30 degrees |
| Tire Size | 15.5-25, 12 PR (L-2) |
Transmission
| Transmission Type | powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 18.9 mph (30.3 km/h) |
| Max Speed - Reverse | 20.1 mph (32.3 km/h) |
Hydraulic System
| Relief Valve Setting | 2500 psi (17236.9 kPa) |
| Pump Flow Capacity | 40.2 gal/min (152 L/min) |
| Raise Time | 5.9 sec |
| Dump Time | 1.6 sec |
| Lower Time | 3.6 sec |
