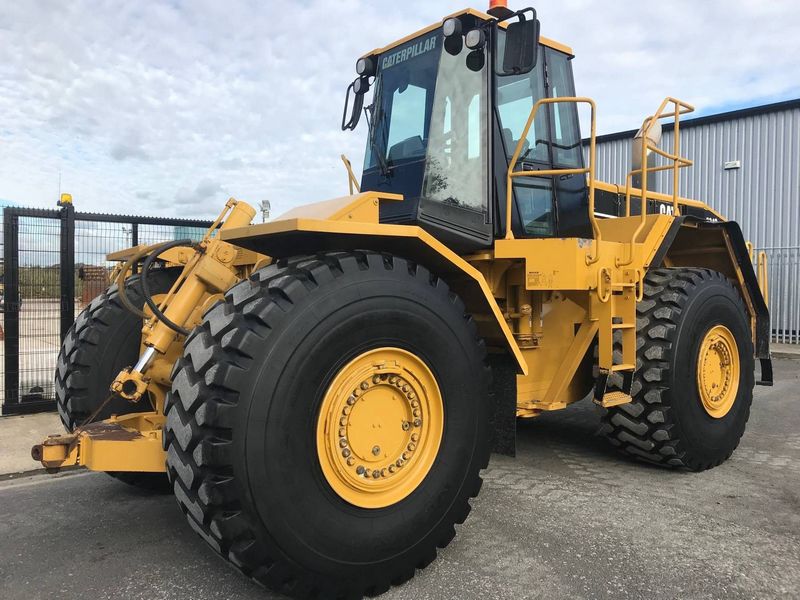

Caterpillar 824G Series II
Browse All Caterpillar or Wheel Dozer Models
Contents:
Dimensions
| Length With Blade On Ground | 27.2 ft in (8290 mm) |
| Width Over Tires | 14.8 ft in (4510 mm) |
| Ground Clearance | 1.3 ft in (396.24 mm) |
| Height To Top Of Cab | 12.14 ft in (3700 mm) |
| Wheelbase | 12.14 ft in (3700 mm) |
| Height - Top Of Exhaust Pipe | 138 in (3505.2 mm) |
| Centerline Of Rear Axle To Edge Of Bumper | 8.7 ft in (2.66 m) |
| Length - With Blade On Ground | 26.8 ft in (8.17 m) |
| Wheel Base | 12.1 ft in (3.69 m) |
| Height - Top Of Hood | 100.8 in (2560.33 mm) |
| Centerline Of Rear Axle To Hitch | 73.2 in (1859.28 mm) |
| Height - Bottom Of Ladder | 2.3 ft in (0.71 m) |
| Ground Clearance - Bumper | 2.9 ft in (0.89 m) |
| Height - Top Of Cab | 12.1 ft in (3.69 m) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2236 |
| Engine Model | 3176C ATAAC |
| Net Power | 339.3 hp (253 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 891 cu in (14.6 L) |
| Bore | 5.4 in (137.2 mm) |
| Stroke | 6.5 in (165.1 mm) |
| Net Power - Iso 9249 | 339 hp (252.8 kw) |
| Engine Model | Cat 3406E ATAAC Diesel |
| Flywheel Power | 339 hp (252.8 kw) |
| Net Power - Eec 80/1269 | 339 hp (252.8 kw) |
| Net Power - Din 70020 | 327 PS |
| Net Power - Sae J1349 (Jan90) | 339 hp (252.8 kw) |
Operational
| Operating Weight | 63325.6 lb (28724 kg) |
| Fuel Capacity | 166.5 gal (630 L) |
| Tire Size | 29.5-5 16PR |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 20.6 mph (33.1 km/h) |
| Max Speed - Reverse | 22.8 mph (36.6 km/h) |
| Forward - 1 | 3.8 mph (6.2 km/h) |
| Forward - 2 | 6.5 mph (10.5 km/h) |
| Forward - 3 | 11.4 mph (18.4 km/h) |
| Forward - 4 | 20 mph (32.2 km/h) |
| Reverse - 1 | 4.3 mph (7 km/h) |
| Reverse - 2 | 7.5 mph (12.1 km/h) |
Steering
| Steering | Full hydraulic, power steering |
Transmission
| Reverse - 3 | 13 mph (21 km/h) |
| Reverse - 4 | 22.7 mph (36.6 km/h) |
Steering
| Turning Radius - With Straight Blade | 24 ft in (7.4 m) |
Transmission
| Number Of Forward Speeds | 4 |
| Number Of Reverse Speeds | 4 |
Weights
| Operating Weight | 63325 lb (28723.8 kg) |
Tires
| Standard Tire Size | 29.5-25 L-3 |
| Tires | 10 choices in addition to standard offering. |
Blade
| Blade Capacity | 6.7 yd3 (5.2 m3) |
| Blade Width | 14.8 ft in (4510 mm) |
Hydraulic System
| Relief Valve Setting | 3500 psi |
Blade
| Blade Height | 4.1 ft in (1229 mm) |
Axles
| Front | Planetary fixed |
| Rear | Planetary oscillating 13 degrees |
Hydraulic System
| Vane Pump Output At 2,000 Rpm And 6900 Kpa (1,000 Psi) | 24.5 gal/min |
| Lift Cylinder, Bore And Stroke | 120.65 mm x 915 mm 4.75 in x 36 in |
| Steering Cylinder, Bore And Stroke | 114.3 mm x 576 mm 4.5 in x 22.7 in |
| Right Tilt And Tip, Bore And Stroke | 152.4 mm x 255 mm 6 in x 10 in |
| Left Tilt And Tip, Bore And Stroke | 133.35 mm x 255 mm 5.25 in x 10 in |
Brakes
| Brakes | Meet OSHA, SAE J1473 DEC84, ISO 2450-1985 standards. |
Service Refill Capacities
| Cooling System | 21.9 gal (83 L) |
| Crankcase | 9 gal (34.1 L) |
| Hydraulic Tank | 23.2 gal (87.9 L) |
| Fuel Tank - Standard | 166.5 gal (630.3 L) |
| Transmission | 16.4 gal (62.1 L) |
| Differential - Final Drives - Front | 23.8 gal (90.1 L) |
| Differential - Final Drives - Rear | 23.8 gal (90.1 L) |
Cab
| Rops/Fops | Meets SAE and ISO standards. |
Sound Performance
| Standards | Meet ANSI/SAE and ISO requirements. |
Blade Specifications
| Straight Blade - Capacity | 6.2 yd3 (4.7 m3) |
| Blade Capacities | 4.67 m3 6.11 yd3 |
| Moldboard - Length | 13.8 ft in (4.2 m) |
| Blade Tip Angle - Total | 22.4 degrees |
| Blade Tip Angle - Forward | 11.2 degrees |
| Blade Tip Angle - Back | 11.2 degrees |
| Blade Tilt Angle - Right | 15.2 degrees |
| Blade Tilt Angle - Left | 15.2 degrees |
| Maximum Lift Above Ground | 3.5 ft in (1.1 m) |
| Straight Blade - Overall Width | 14.8 ft in (4.6 m) |
| Straight Blade - Height | 48.4 ft in (14.8 m) |
| Straight Blade - Digging Depth | 17 ft in (5.2 m) |
| Straight Blade - Ground Clearance | 37.6 ft in (11.5 m) |
| Straight Blade - Maximum Tilt | 46.7 ft in (14.3 m) |
