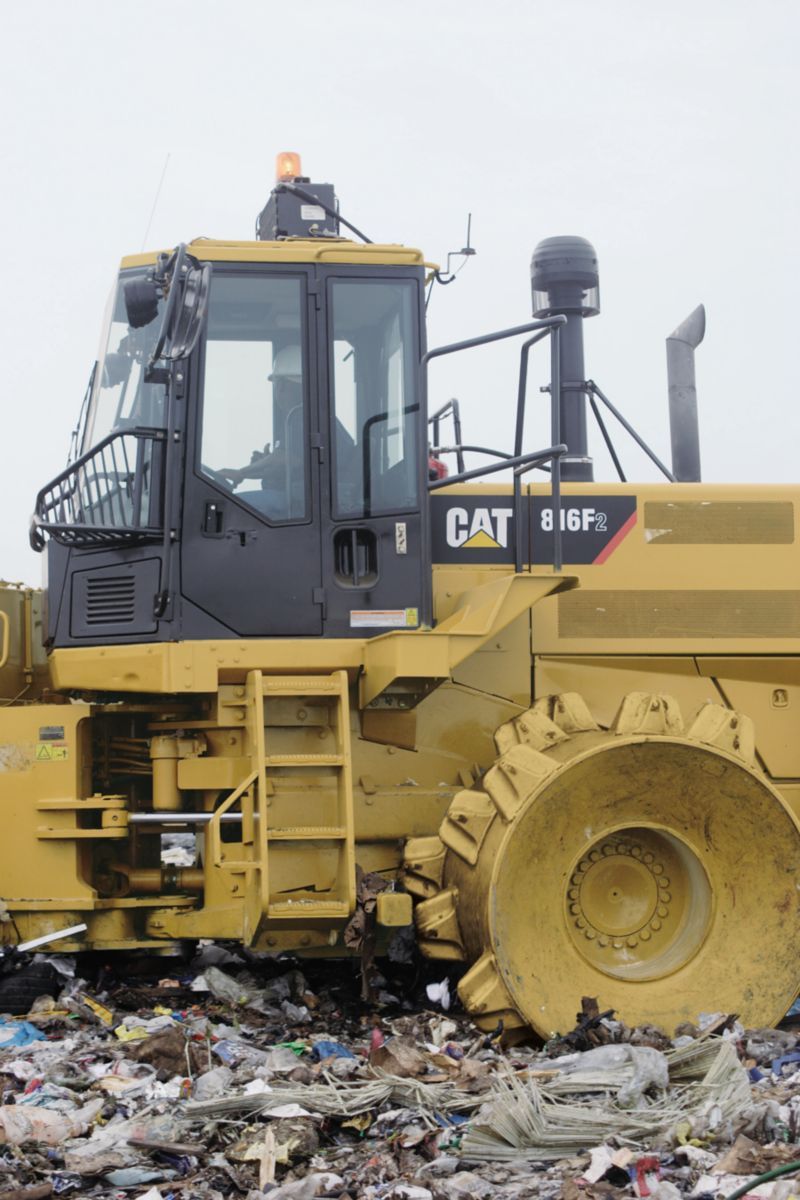

Caterpillar 816F Series 2
Browse All Caterpillar or Compactor Models
Contents:
Dimensions
| Length With Blade On Ground | 25.76 ft in (7851.65 mm) |
| Ground Clearance | 1.5 ft in (457.2 mm) |
| Width Over Wheels | 10.95 ft in (3337.56 mm) |
| Height To Top Of Cab | 12.75 ft in (3886.2 mm) |
| Wheelbase | 10.9 ft in (3322.32 mm) |
Dimensions (Approximate)
| Ground Clearance | 1.49 ft in (0.46 m) |
| Height - Top Of Cab With A/C | 12.75 ft in (3.89 m) |
| Blade Width - Straight | 11.67 ft in (3.56 m) |
| Height - Top Of Hood | 8.16 ft in (2.49 m) |
| Length - With Blade On Ground | 25.76 ft in (7.86 m) |
| Turning Radius - Outside End Bits | 21.21 ft in (6.47 m) |
| Wheel Base | 10.9 ft in (3.33 m) |
| Width - Over End Bits - Blade | 11.99 ft in (3.66 m) |
| Width - Over Wheels | 10.95 ft in (3.34 m) |
| Height - Top Of Exhaust Pipe | 11.36 ft in (3.47 m) |
| Centerline Of Rear Axle To Edge Of Bumper | 6.22 ft in (1.9 m) |
| Centerline Of Rear Axle To Hitch | 5.5 ft in (1.68 m) |
| Drum Width | 3.33 ft in (1.02 m) |
| Ground Clearance - Bumper | 2.64 ft in (0.81 m) |
| Ground Clearance - Striker Bars | 2.13 ft in (0.65 m) |
Operating Specifications
| Ground Clearance | 1.5 ft in (0.46 m) |
Engine
| Engine Make | 2236 |
| Engine Model | C9 Acert |
| Gross Power | 253 hp (188.7 kw) |
| Net Power | 232 hp (173.1 kw) |
| Displacement | 537 cu in (8.8 L) |
| Torque Rise | 19 % |
| Bore | 4.4 in (111.8 mm) |
| Stroke | 5.9 in (149.9 mm) |
| Net Power - Iso 9249 | 235 hp (175.3 kw) |
| Engine Model | Cat C9 ACERT |
| Eec 80/1269 | 235 hp (175.3 kw) |
| Sae J1349 | 232 hp (173.1 kw) |
| Net Power Iso 3046-2 | 232 hp (173.1 kw) |
Operational
| Operating Weight | 52364 lb (23752 kg) |
| Fuel Capacity | 117.8 gal (446 L) |
| Hydraulic System Fluid Capacity | 36.2 gal (137.1 L) |
| Cooling System Fluid Capacity | 14.5 gal (54.9 L) |
| Transmission Fluid Capacity | 13.2 gal (50 L) |
Transmission
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Reverse | 4 mph (6.5 km/h) |
| Max Speed - Forward | 3.5 mph (5.7 km/h) |
| Forward - 1 | 3.5 mph (5.7 km/h) |
| Forward - 2 | 5.9 mph (9.5 km/h) |
| Reverse - 1 | 4 mph (6.5 km/h) |
| Reverse - 2 | 6.6 mph (10.7 km/h) |
Weights
| Operating Weight | 52364 lb (23752 kg) |
Hydraulic System
| Relief Valve Setting | 2248 psi |
Blade
| Height | 6.3 in (159.3 mm) |
Axles
| Front | Fixed |
Hydraulic System
| Lift Cylinder Bore X Stroke | 120.65 mm x 913.9 mm 4.75 in x 36 in |
Axles
| Oscillating Rear | 8 degrees |
Hydraulic System
| Vane Pump Output At 2015 Rpm And 6900 Kpa (1000 Psi) | 29.6 gal/min |
Brakes
| Standards | Meet OSHA regulations |
Service Refill Capacities
| Cooling System | 14.5 gal (54.9 L) |
| Fuel Tank | 117.8 gal (446 L) |
| Crankcase | 9 gal (34.1 L) |
| Hydraulic Tank | 23.2 gal (87.9 L) |
| Hydraulic System - Including Tank | 36.2 gal (137.1 L) |
| Transmission | 13.2 gal (50 L) |
| Differential - Final Drives - Front | 11.4 gal (43.2 L) |
| Differential - Final Drives - Rear | 11.4 gal (43.2 L) |
Cab
| Rops/Fops | Meet SAE and ISO standards |
Sound Performance
| Standards | Meet required sound standards |
Straight Blade
| Height | 6.3 ft in (2 m) |
| Width - Over End Bits | 11.9 ft in (3.7 m) |
| Moldboard - Length | 11.7 ft in (3.6 m) |
Wheels - Chevron-Pattern, Chopper Blades
| Drum Width | 3.4 ft in (1.1 m) |
| Drum Diameter | 4.3 ft in (1.3 m) |
| Blades Per Wheel | 20 |
Wheels - Plus Tip Teeth With Abrasion Resistant Material (Arm)
| Drum Width | 3.4 ft in (1.1 m) |
| Drum Diameter | 4.3 ft in (1.3 m) |
| Tips Per Wheel | 20 |
