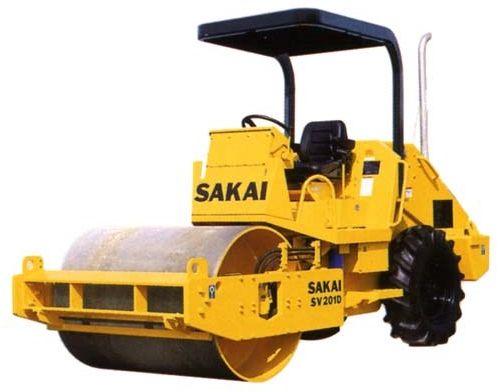

Sakai SV201D
Browse All Sakai or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 13.82 in (4210 mm) |
| Overall Width | 4.5 ft in (1370 mm) |
| Height To Top Of Cab | 8.45 ft in (2575 mm) |
| Wheelbase | 7.65 in (2330 mm) |
| Ground Clearance | 11.42 in (290 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | B3.3-C |
| Gross Power | 60.4 hp (45 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 199 cu in (3.3 L) |
Operational
| Operating Weight | 9590.2 lb (4350 kg) |
| Fuel Capacity | 26.5 gal (100 L) |
| Hydraulic System Fluid Capacity | 10.1 gal (38 L) |
| Max Speed | 4.6 mph (7.4 km/h) |
| Tires *If Applicable | 11.2-20-6PR |
| Operating Voltage | 12 V |
Drum
| Drum Width | 54 in (1370 mm) |
| Drum Diameter | 39.4 in (1000 mm) |
| Vibration Frequency 1 | 30 Hz |
| Centrifugal Force - Low | 16186.3 lb (72 kN) |
