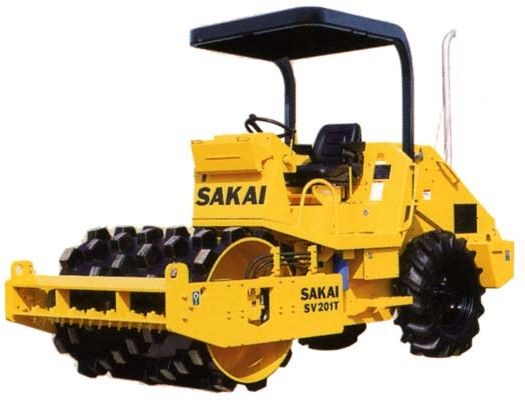

Sakai SV201T
Browse All Sakai or Vibratory Compactor Models
Contents:
Dimensions
| Overall Length W/O Blade | 13.82 ft in (4210 mm) |
| Width Over Tires | 4.5 ft in (1370 mm) |
| Height To Top Of Cab | 8.5 ft in (2590 mm) |
| Wheelbase | 7.65 in (2330 mm) |
| Ground Clearance | 11.82 in (300 mm) |
Drum
| Drum Diameter | 41.34 in (1050 mm) |
| Number Of Pads | 80 |
| Drum Width | 53.94 in (1370 mm) |
| Centrifugal Force - Low | 16186.25 lb (72 kN) |
| Pad Height | 2.76 in (70 mm) |
| Vibration Frequency 1 | 30 Hz |
Engine
| Engine Make | 2347 |
| Engine Model | "B3.3-C" |
| Gross Power | 60.4 hp (45 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 199 cu in (3.3 L) |
Operational
| Operating Weight | 9810.6 lb (4450 kg) |
| Fuel Capacity | 26.5 gal (100 L) |
| Hydraulic System Fluid Capacity | 10.1 gal (38 L) |
| Max Speed | 4.7 mph (7.5 km/h) |
| Tires | 11.2-20-6PR |
| Operating Voltage | 12 V |
