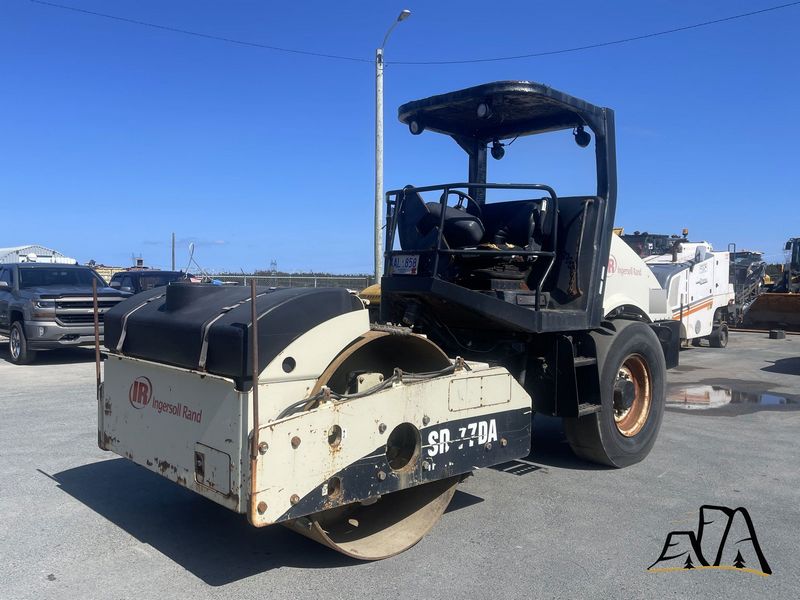

Ingersoll Rand SD77DA
Browse All Ingersoll Rand or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 17.06 in (5197 mm) |
| Overall Width | 6.09 ft in (1854 mm) |
| Height To Top Of Cab | 9.71 ft in (2957 mm) |
| Wheelbase | 9.1 in (2771 mm) |
| Ground Clearance | 15.6 in (396 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | B4.5T |
| Gross Power | 99 hp (73.9 kw) |
Operational
| Operating Weight | 17346 lb (7868 kg) |
| Hydraulic System Fluid Capacity | 130 gal (492 L) |
| Max Speed | 8.2 mph (13.1 km/h) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
Drum
| Drum Width | 66 in (1675 mm) |
| Drum Diameter | 48.1 in (1220 mm) |
| Vibration Frequency 1 | 31 Hz |
| Nominal Amplitude - High | 0.1 in (1.1 mm) |
| Vibration Frequency 2 | 42 Hz |
| Nominal Amplitude - Low | 0.1 in (0.5 mm) |
| Centrifugal Force - High | 26077.9 lb (116 kN) |
| Centrifugal Force - Low | 5845.1 lb (26 kN) |
