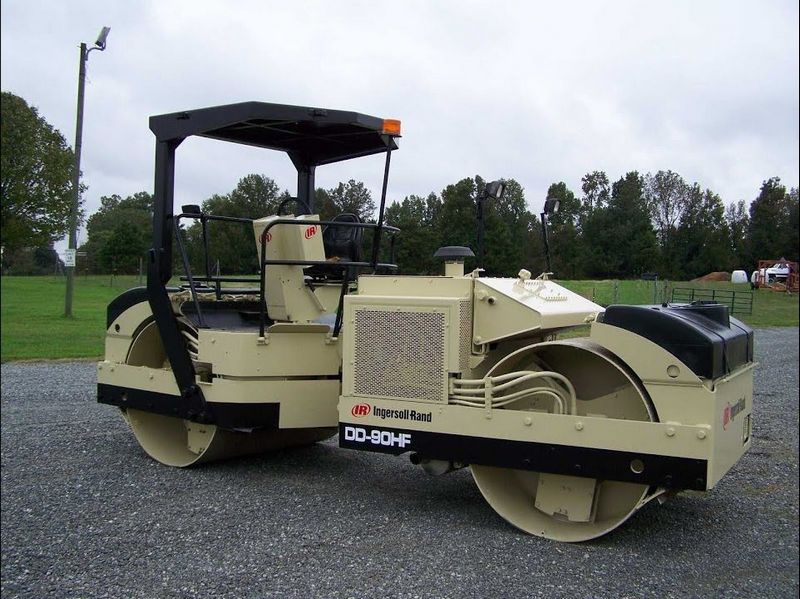

Ingersoll Rand DD90HF
Browse All Ingersoll Rand or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 16.5 in (5085 mm) |
| Height To Top Of Cab | 9.25 ft in (2845 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | B3.9-C |
| Net Power | 110 hp (82 kw) |
| Aspiration | Turbocharged 4-cylinder |
Operational
| Operating Weight | 21705 lb (9845 kg) |
| Fuel Capacity | 45 gal (170 L) |
| Hydraulic System Fluid Capacity | 35 gal (133 L) |
| Max Speed | 8.7 mph (14 km/h) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
Drum
| Drum Width | 66 in (1675 mm) |
| Drum Diameter | 48 in (1220 mm) |
| Vibration Frequency 1 | 63.3 Hz |
| Nominal Amplitude - High | 0.1 in (0.7 mm) |
| Vibration Frequency 2 | 47.5 Hz |
| Nominal Amplitude - Low | 0.1 in (0.5 mm) |
| Centrifugal Force - High | 38430 lb (171 kN) |
| Centrifugal Force - Low | 16030 lb (71.3 kN) |
