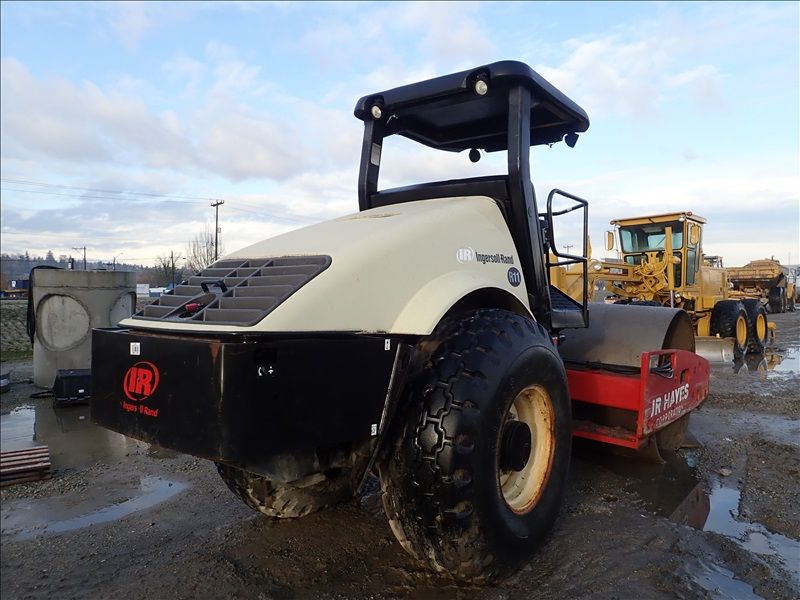

Ingersoll Rand SD116DX
Browse All Ingersoll Rand or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 19.35 in (5895 mm) |
| Overall Width | 7.5 ft in (2286 mm) |
| Height To Top Of Cab | 10.15 ft in (3091 mm) |
| Wheelbase | 10.18 in (3100 mm) |
| Ground Clearance | 19.02 in (483 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | QSB5.9-30T |
| Gross Power | 115 hp (85.8 kw) |
Operational
| Fuel Capacity | 67.9 gal (257 L) |
| Hydraulic System Fluid Capacity | 22.2 gal (84 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
Drum
| Drum Width | 84.1 in (2134 mm) |
| Drum Diameter | 59.1 in (1499 mm) |
| Vibration Frequency 1 | 24 Hz |
| Nominal Amplitude - High | 0.1 in (2 mm) |
| Vibration Frequency 2 | 34 Hz |
| Nominal Amplitude - Low | 0.1 in (1.3 mm) |
| Centrifugal Force - Med High | 60024 lb (267 kN) |
| Centrifugal Force - Low | 47884.4 lb (213 kN) |
