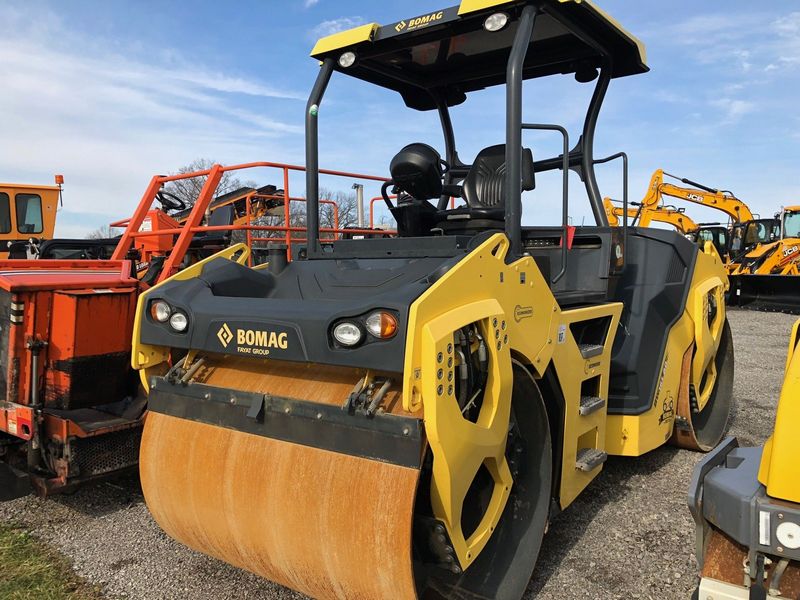

Bomag BW161AD
Browse All Bomag or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 15.79 in (4810 mm) |
| Overall Width | 6.13 ft in (1866 mm) |
| Height To Top Of Cab | 9.52 ft in (2900 mm) |
| Wheelbase | 10.44 in (3180 mm) |
| Ground Clearance | 15.75 in (400 mm) |
| Drum Diameter - Front | 4.01 ft in (1220 mm) |
| Drum Diameter - Rear | 4.01 ft in (1220 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Engine Model | BF4L 913 |
| Gross Power | 102 hp (76 kw) |
| Net Power | 93.9 hp (70 kw) |
| Power Measured @ | 2150 rpm |
| Aspiration | natural |
Operational
| Operating Weight | 21459.8 lb (9734 kg) |
| Fuel Capacity | 34.1 gal (129 L) |
| Hydraulic System Fluid Capacity | 219.3 gal (830 L) |
| Max Speed | 8.1 mph (13 km/h) |
| Operating Voltage | 12 V |
Drum
| Drum Width | 66.2 in (1680 mm) |
| Drum Diameter | 48.1 in (1220 mm) |
| Vibration Frequency 1 | 30 Hz |
| Nominal Amplitude - High | 0.1 in (0.5 mm) |
| Vibration Frequency 2 | 45 Hz |
| Nominal Amplitude - Low | 0.1 in (1 mm) |
| Centrifugal Force - High | 13938.2 lb (62 kN) |
| Centrifugal Force - Low | 13039 lb (58 kN) |
