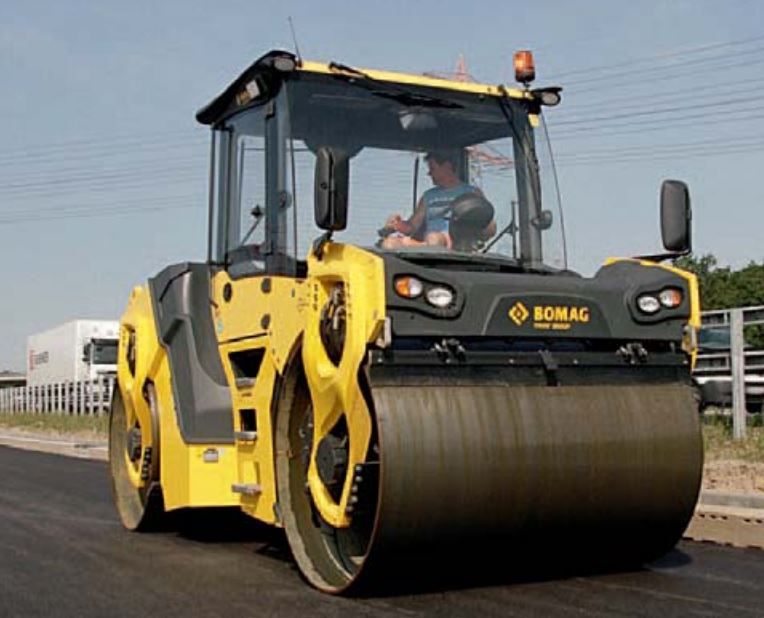

Bomag BW190AD-5 HF
Browse All Bomag or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 190.56 in (4840 mm) |
| Overall Width | 7.05 ft in (2146 mm) |
| Height To Top Of Cab | 10.01 ft in (3050 mm) |
| Wheelbase | 142.52 in (3620 mm) |
| Ground Clearance | 9.85 in (250 mm) |
| Drum Diameter - Front | 4.01 ft in (1220 mm) |
| Drum Diameter - Rear | 4.01 ft in (1220 mm) |
| Track Radius Inner | 186.82 in (4745 mm) |
Steering System
| System | Oscilatory Articulating |
Engine
| Number Of Cylinders | 4 |
| Cooling Method | Water |
| Engine Make | Kubota |
| Engine Model | V3800 CR-TI |
| Gross Power | 114 hp (85 kw) |
| Power Measured @ | 2600 rpm |
Operational
| Operating Weight | 26124.8 lb (11850 kg) |
| Fuel Capacity | 38.4 gal (145 L) |
| Water Spray Tank Fluid Capacity | 198.2 gal (750 L) |
| Operating Voltage | 12 V |
Drum
| Vibration Frequency 1 | 50 Hz |
| Nominal Amplitude - High | 0.1 in (1 mm) |
| Vibration Frequency 2 | 70 Hz |
| Nominal Amplitude - Low | 0.1 in (0.4 mm) |
| Centrifugal Force - High | 39791.2 lb (177 kN) |
| Centrifugal Force - Low | 27876.4 lb (124 kN) |
Brakes
| Parking Brake | Multi Disc |
| Service Brake | Hydrostatic |
