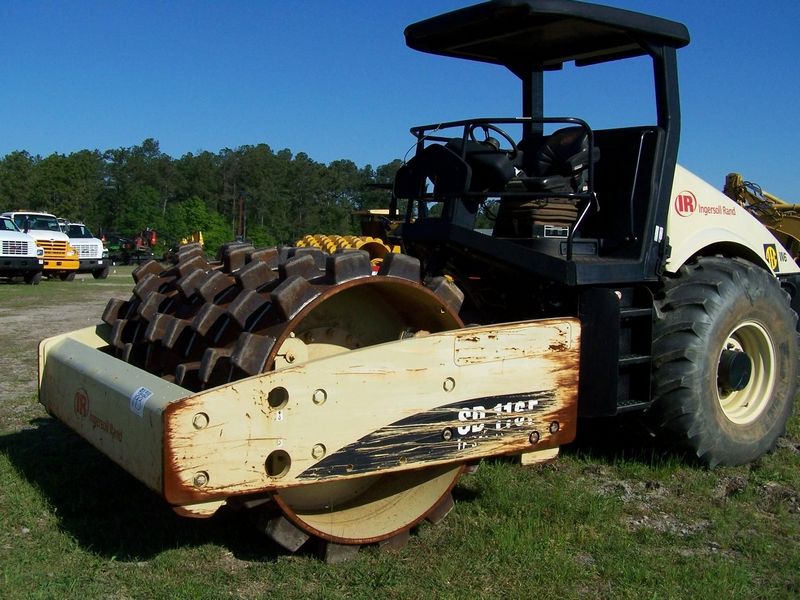

Ingersoll Rand SD116F
Browse All Ingersoll Rand or Vibratory Compactor Models
Contents:
Dimensions
| Overall Length W/O Blade | 19.35 ft in (5895 mm) |
| Width Over Tires | 7.5 ft in (2286 mm) |
| Height To Top Of Cab | 10.33 ft in (3146 mm) |
| Wheelbase | 10.18 in (3100 mm) |
Drum
| Drum Diameter | 50.99 in (1295 mm) |
| Centrifugal Force - High | 60923.23 lb (271 kN) |
| Pad Height | 5 in (127 mm) |
| Pad Surface Area | 21 in2 (13548.36 cm2) |
| Vibration Frequency 1 | 34 Hz |
| Vibratory Frequency 2 | 27.5 Hz |
| Number Of Pads | 112 |
| Centrifugal Force - Low | 59349.57 lb (264 kN) |
| Drum Width | 84.02 in (2134 mm) |
| Nominal Amplitude - High | 0.09 in (2.21 mm) |
| Nominal Amplitude - Low | 0.06 in (1.44 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | QSB5.9-3OT |
| Net Power | 155 hp (115.6 kw) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 25050 lb (11362.5 kg) |
| Fuel Capacity | 68 gal (257.5 L) |
| Hydraulic System Fluid Capacity | 22 gal (83.3 L) |
| Max Speed | 7.8 mph (12.4 km/h) |
| Tires | 23.1x26 8PR R1 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
