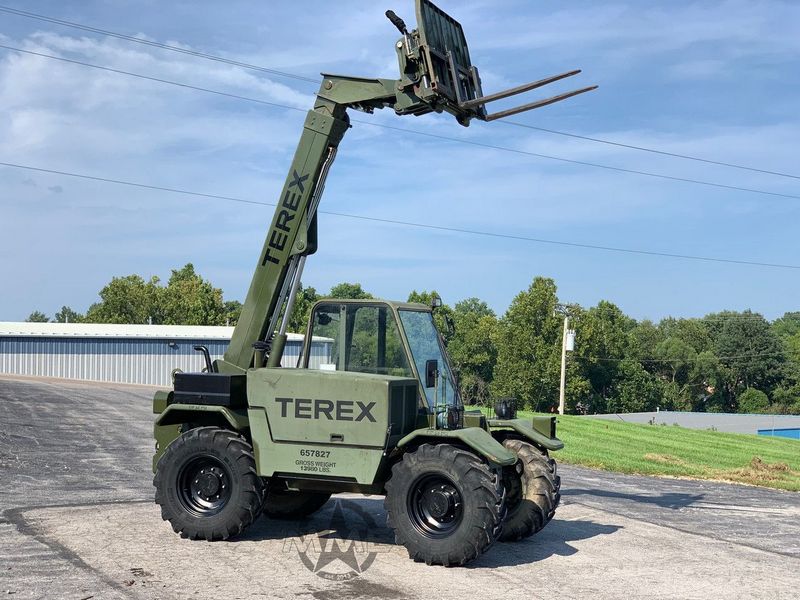

Terex TX51-19M
Browse All Terex or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 13.6 ft in (4145.28 mm) |
| Ground Clearance | 1.4 ft in (426.72 mm) |
| Width Over Tires | 4.12 ft in (1252.73 mm) |
| Overall Height | 7.6 ft in (2316.48 mm) |
| Wheelbase | 7.7 ft in (2346.96 mm) |
| Turning Radius Outside Tires | 26.8 ft in (8168.64 mm) |
| Max. Reach @ Full Height | 14.8 ft in (4.52 m) |
| Cab Width | 3 ft in (0.92 m) |
| Overall Width | 6.6 ft in (2011.68 mm) |
Lift
| Max Lift Height | 18.9 ft in (5760.72 mm) |
| Max Forward Reach | 10.9 ft in (3322.32 mm) |
| Payload At Max. Lift Height | 2755 lb (1249.65 kg) |
| Payload At Max Reach | 1765 lb (800.6 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | PERKINS |
| Engine Model | 704-30T |
| Gross Power | 80 hp (59.7 kw) |
| Power Measured @ | 2600 rpm |
| Displacement | 180.4 cu in (3 L) |
| Bore | 3.9 in (97 mm) |
| Stroke | 4 in (100 mm) |
Operational
| Operating Weight | 2535.4 lb (1150 kg) |
| Fuel Capacity | 26 gal (98.5 L) |
| Hydraulic System Fluid Capacity | 18.5 gal (70.1 L) |
| Travel Speed | 20 mph (32.2 km/h) |
