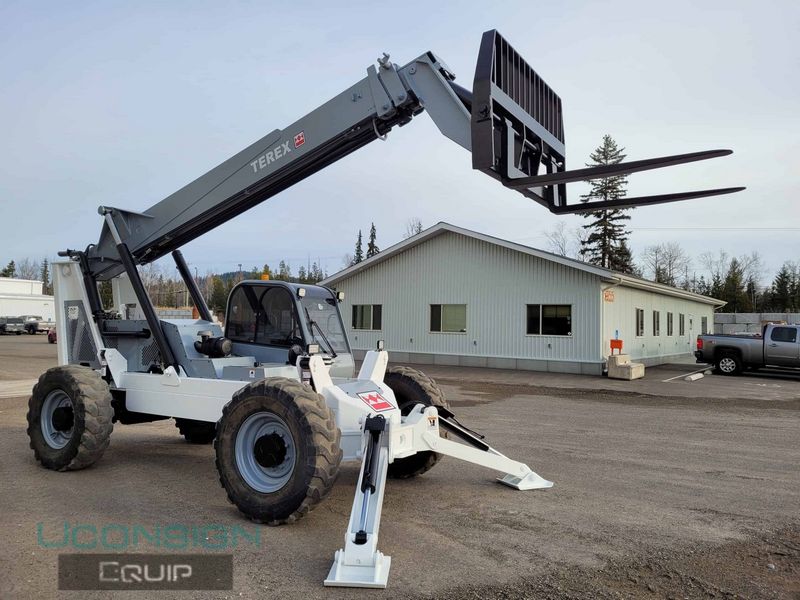

Terex TH1048C
Browse All Terex or Telescopic Forklift Models
Contents:
Dimensions
| Ground Clearance | 1.58 ft in (480 mm) |
| Overall Height | 9.59 ft in (2920 mm) |
| Wheelbase | 11.26 ft in (3430 mm) |
| Turning Radius - Inside | 6.67 ft in (2030 mm) |
| Max. Reach @ Full Height | 5.52 ft in (1.68 m) |
| Overall Length | 26.51 ft in (8080 mm) |
| Overall Width | 8.5 ft in (2590 mm) |
| Turning Radius Outside Tires | 15.16 ft in (4620 mm) |
Lift
| Max Lift Height | 47.91 ft in (14600 mm) |
| Max Forward Reach | 31.01 ft in (9450 mm) |
| Payload At Max. Lift Height | 5998.78 lb (2721 kg) |
| Payload At Max Reach | 2998.29 lb (1360 kg) |
| Max Lift Capacity | 10000.17 lb (4536 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | John Deere |
| Engine Model | 4045T |
| Gross Power | 115 hp (85.8 kw) |
Operational
| Operating Weight | 30194.6 lb (13696 kg) |
| Fuel Capacity | 30 gal (113.6 L) |
| Hydraulic System Fluid Capacity | 48 gal (181.7 L) |
| Tire Size | 1400 x 24-12 ply |
| Travel Speed | 18.6 mph (29.8 km/h) |
Transmission
| Number Of Forward Gears | 3 |
Hydraulic
| Pump Type | Pressure compensated hydraulic system |
Brakes
| Brakes Type | Inboard multiple wet disc |
