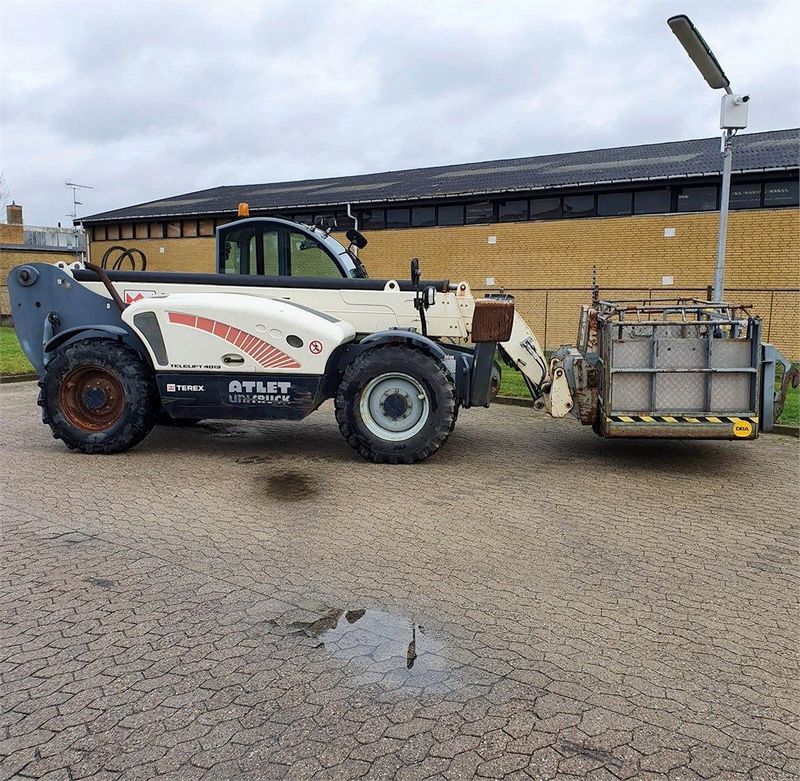

Terex 4013
Browse All Terex or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 20.02 ft in (6100 mm) |
| Ground Clearance | 16.93 ft in (430 mm) |
| Width Over Tires | 7.65 ft in (2330 mm) |
| Overall Height | 7.96 ft in (2425 mm) |
| Wheelbase | 9.68 ft in (2950 mm) |
| Turning Radius Outside Tires | 12.44 ft in (3790 mm) |
Lift
| Max Lift Height | 42.66 ft in (13000 mm) |
| Max Forward Reach | 29.79 ft in (9080 mm) |
| Max Load At Max Reach | 2755.78 lb (1250 kg) |
| Max Load At Max Height | 6613.87 lb (3000 kg) |
| Max Lift Capacity | 8818.5 lb (4000 kg) |
Engine
| Number Of Cylinders | 4 |
| Net Power | 99 hp (73.9 kw) |
| Power Measured @ | 2200 rpm |
| Aspiration | Turbo |
Operational
| Operating Weight | 21649.4 lb (9820 kg) |
| Fuel Capacity | 39.7 gal (150 L) |
| Hydraulic System Fluid Capacity | 35.7 gal (135 L) |
| Tire Size | 405/70-20 PR14 |
Transmission
| Transmission Type | Hydrostatic 2-speed mechanical gearbox |
| Max Speed - Forward | 21.8 mph (35 km/h) |
| Max Speed - Reverse | 21.8 mph (35 km/h) |
Hydraulic
| Pump Type | fixed displacement pump |
| Pump Flow Capacity | 25.1 gal/min (95 L/min) |
| Relief Valve Pressure | 3916.1 psi (27000 kPa) |
