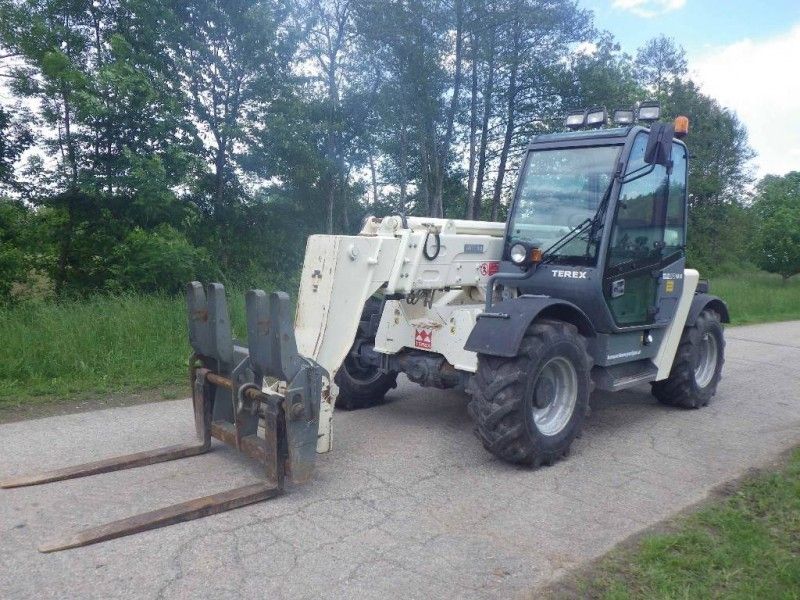

Terex 4010
Browse All Terex or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 18.87 ft in (5750 mm) |
| Ground Clearance | 16.93 ft in (430 mm) |
| Width Over Tires | 7.39 ft in (2250 mm) |
| Overall Height | 8.04 ft in (2450 mm) |
| Wheelbase | 9.03 ft in (2750 mm) |
| Turning Radius Outside Tires | 14.77 ft in (4500 mm) |
Lift
| Max Lift Height | 32.22 ft in (9820 mm) |
| Max Forward Reach | 19.92 ft in (6070 mm) |
| Max Load At Max Reach | 4409.25 lb (2000 kg) |
| Max Load At Max Height | 6613.87 lb (3000 kg) |
| Max Lift Capacity | 8818.5 lb (4000 kg) |
Engine
| Gross Power | 81.5 hp (60.8 kw) |
| Power Measured @ | 2500 rpm |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 20503 lb (9300 kg) |
| Fuel Capacity | 24.4 gal (92 L) |
| Hydraulic System Fluid Capacity | 23.8 gal (90 L) |
| Tire Size | 400/70-20 PR 14 |
Transmission
| Transmission Type | hydrostatic 2-speed mechanical gearbox |
| Max Speed - Forward | 19.9 mph (32 km/h) |
| Max Speed - Reverse | 19.9 mph (32 km/h) |
Hydraulic
| Pump Type | fixed displacement |
| Pump Flow Capacity | 21.2 gal/min (80 L/min) |
| Relief Valve Pressure | 3916.1 psi (27000 kPa) |
