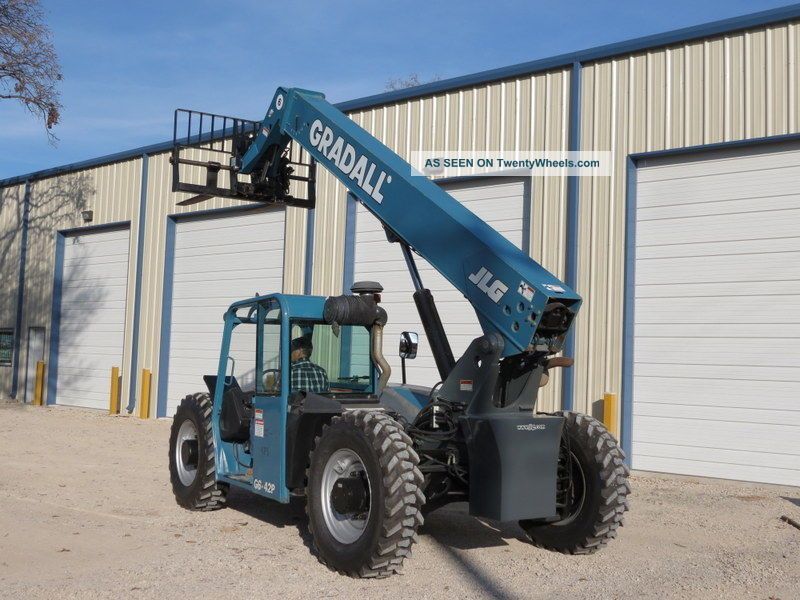

JLG G6-42P
Browse All JLG or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 18.15 ft in (5530 mm) |
| Ground Clearance | 1.48 ft in (450 mm) |
| Width Over Tires | 7.98 ft in (2430 mm) |
| Overall Height | 7.81 ft in (2380 mm) |
| Wheelbase | 10.83 ft in (3300 mm) |
| Turning Radius Outside Tires | 14.24 ft in (4340 mm) |
Lift
| Max Lift Height | 42 ft in (12800 mm) |
| Max Forward Reach | 29.01 ft in (8840 mm) |
| Max Load At Max Reach | 1100.11 lb (499 kg) |
| Max Load At Max Height | 6000.99 lb (2722 kg) |
| Max Lift Capacity | 6613.87 lb (3000 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | 4045T |
| Gross Power | 99.3 hp (74 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 274.7 cu in (4.5 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 20399.4 lb (9253 kg) |
| Fuel Capacity | 46 gal (174 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 63 amps |
| Drawbar Pull | 16292.2 lb (7390 kg) |
| Tire Size | 13.00x24 12PR |
Transmission
| Transmission Type | hydrostatic |
| Max Speed - Forward | 16 mph (25.7 km/h) |
Hydraulic
| Pump Type | dual-section gear |
