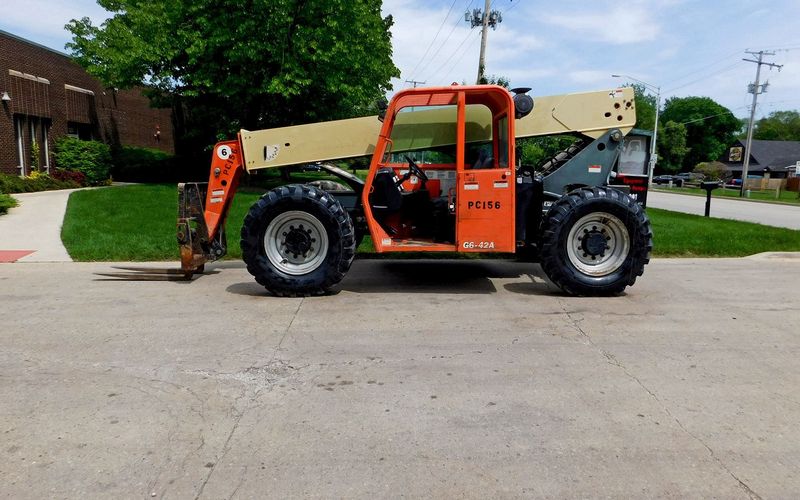

JLG G6-42A
Browse All JLG or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 17.72 ft in (5400 mm) |
| Ground Clearance | 16.38 ft in (416 mm) |
| Width Over Tires | 7.91 ft in (2410 mm) |
| Overall Height | 7.81 ft in (2380 mm) |
| Wheelbase | 10.67 ft in (3250 mm) |
| Turning Radius Outside Tires | 11.98 ft in (3650 mm) |
Lift
| Max Lift Height | 42 ft in (12800 mm) |
| Max Forward Reach | 28.97 ft in (8830 mm) |
| Max Load At Max Reach | 1000 lb (453.6 kg) |
| Max Load At Max Height | 6000 lb (2721.56 kg) |
| Max Lift Capacity | 6600 lb (2993.71 kg) |
Engine
| Engine Make | 2240 |
| Engine Model | e 4045TF150 |
| Gross Power | 99.3 hp (74 kw) |
Operational
| Operating Weight | 20399.4 lb (9253 kg) |
| Fuel Capacity | 37.3 gal (141 L) |
| Hydraulic System Fluid Capacity | 40 gal (151.4 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 63 amps |
| Drawbar Pull | 18000 lb (8164.7 kg) |
| Tire Size | 13.00x24 12PR |
Transmission
| Transmission Type | Dana VDT-12000 powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 19.6 mph (31.4 km/h) |
Hydraulic
| Pump Type | single-section gear |
