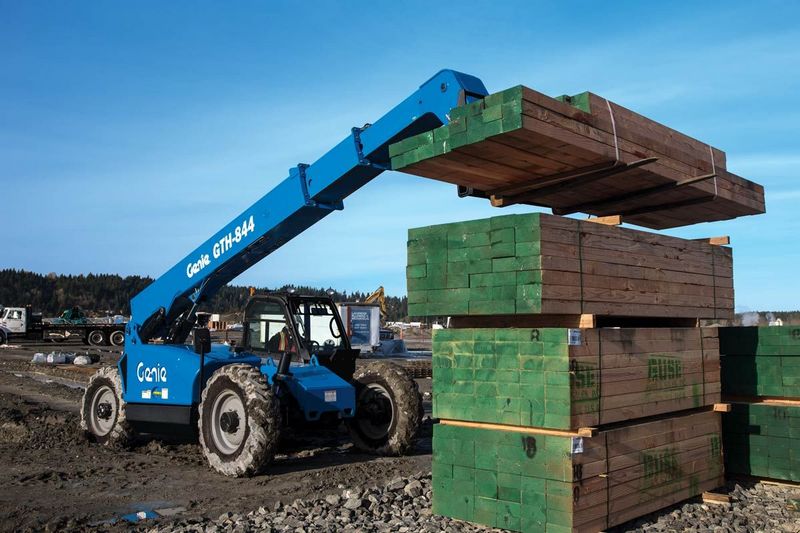

Genie GTH844
Browse All Genie or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 20.25 ft in (6170 mm) |
| Ground Clearance | 1.42 ft in (430 mm) |
| Width Over Tires | 8.14 ft in (2480 mm) |
| Overall Height | 7.85 ft in (2390 mm) |
| Wheelbase | 11.32 ft in (3450 mm) |
| Turning Radius Outside Tires | 14.77 ft in (4500 mm) |
| Weight | 22599.59 lb (10251 kg) |
Lift
| Max Lift Height | 43.84 ft in (13360 mm) |
| Max Forward Reach | 28.19 ft in (8590 mm) |
| Lift Capacity At Max - Height | 6000.99 lb (2722 kg) |
| Max Lift Capacity | 8000.58 lb (3629 kg) |
| Max Load At Max Height | 6000.99 lb (2722 kg) |
| Max Load At Max Reach | 1999.6 lb (907 kg) |
| Reach At Maximum Height | 25.2 in (640 mm) |
| Lift Capacity At Max - Reach | 1999.6 lb (907 kg) |
Engine
| Power | Deutz 3.6TCD turbo charged diesel |
| Emission Tier Level | Tier 4f |
| Battery | 1000 CCA at 0°F (-18°C) |
| Engine Make | 2351 |
| Engine Model | 1104C-44T |
| Gross Power | 74 hp (55.2 kw) |
| System Voltage | 12 V |
| Aspiration | Turbocharged |
Operational
| Drive Speed | 15 mph (24.2 km/h) |
| Operating Weight | 22500.4 lb (10206 kg) |
| Fuel Capacity | 32 gal (121 L) |
| Hydraulic System Fluid Capacity | 55000.7 gal (208200 L) |
| Drawbar Pull | 20999.1 lb (9525 kg) |
| Tire Size | 13 x 24 in, 12 ply |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 17.1 mph (27.4 km/h) |
Hydraulic
| Auxiliary Hydraulic Pressure | 3000 psi (20684.3 kPa) |
| Auxiliary Hydraulic Flow | 15 gal/min (56.8 L/min) |
| Pump Type | variable displacement |
| Pump Flow Capacity | 6.9 gal/min (26 L/min) |
| Relief Valve Pressure | 3000 psi (20684.3 kPa) |
Boom
| Boom Extend | 10 sec |
| Boom Up | 13 sec |
| Boom Retract | 14 sec |
| Boom Down | 9 sec |
