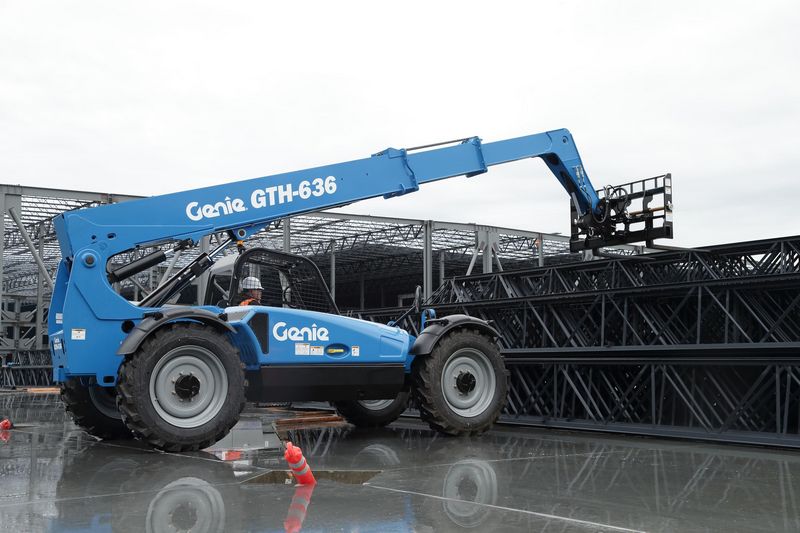

Genie GTH636
Browse All Genie or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 17.85 ft in (5440 mm) |
| Ground Clearance | 1.25 ft in (380 mm) |
| Width Over Tires | 7.91 ft in (2410 mm) |
| Overall Height | 7.85 ft in (2390 mm) |
| Wheelbase | 10.93 ft in (3330 mm) |
| Turning Radius Outside Tires | 14.41 ft in (4390 mm) |
| Weight | 17599.51 lb (7983 kg) |
Lift
| Max Lift Height | 36 ft in (10970 mm) |
| Max Forward Reach | 21 ft in (6400 mm) |
| Lift Capacity At Max - Height | 5000.09 lb (2268 kg) |
| Max Load At Max Height | 6000.99 lb (2722 kg) |
| Max Load At Max Reach | 1999.6 lb (907 kg) |
| Reach At Maximum Height | 22.05 in (560 mm) |
| Lift Capacity At Max - Reach | 1499.15 lb (680 kg) |
Engine
| Power | Deutz TD 2.9 L4 turbo charged diesel |
| Emission Tier Level | Tier 4f |
| Battery | 1000 CCA at 0°F (-18°C) |
| Engine Make | 2351 |
| Engine Model | 1104C-44T |
| Gross Power | 74 hp (55.2 kw) |
| System Voltage | 12 V |
| Alternator | 95 amps |
| Aspiration | Turbocharged |
Operational
| Drive Speed | 18 mph (29 km/h) |
| Turning Radius - Axle Outside | 13.4 ft in (4.1 m) |
| Operating Weight | 20999.1 lb (9525 kg) |
| Fuel Capacity | 30.2 gal (114 L) |
| Hydraulic System Fluid Capacity | 50 gal (189 L) |
| Drawbar Pull | 19200 lb (8709 kg) |
| Tire Size | 13 x 28 in, 12 ply |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 18.1 mph (29 km/h) |
Hydraulic
| Auxiliary Hydraulic Pressure | 3000 psi (20684.3 kPa) |
| Auxiliary Hydraulic Flow | 15 gal/min (56.8 L/min) |
| Pump Type | Variable displacement |
| Pump Flow Capacity | 6.9 gal/min (26 L/min) |
| Relief Valve Pressure | 2800 psi (19305.4 kPa) |
Boom
| Boom Up | 10 sec |
| Boom Extend | 11 sec |
| Boom Retract | 9 sec |
| Boom Down | 8 sec |
