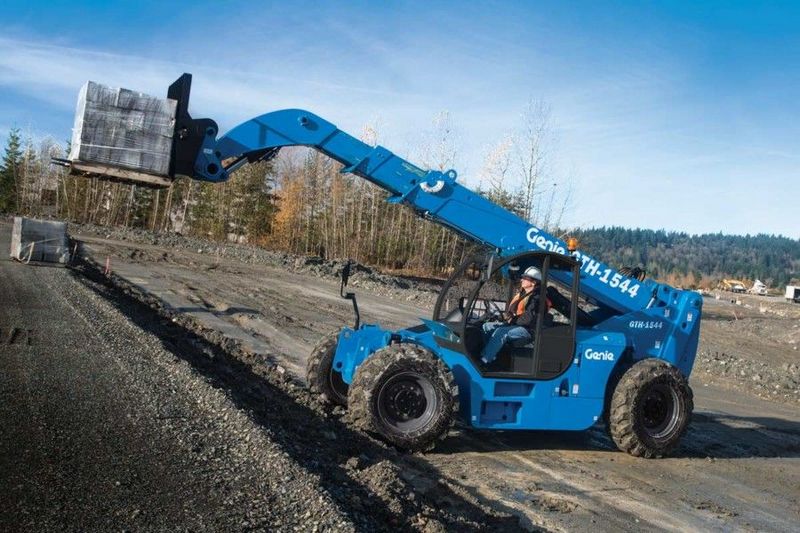

Genie GTH-1544
Browse All Genie or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 21 ft in (6400 mm) |
| Ground Clearance | 1.25 ft in (380 mm) |
| Overall Height | 8.7 ft in (2651.76 mm) |
| Wheelbase | 11.6 ft in (3535.68 mm) |
| Overall Width | 7.11 ft in (2167.13 mm) |
| Weight | 36601.15 lb (16602 kg) |
Lift
| Max Lift Height | 44 ft in (13410 mm) |
| Max Forward Reach | 27.3 ft in (8321.05 mm) |
| Lift Capacity At Max - Reach | 3498.74 lb (1587 kg) |
| Reach At Maximum Height | 10 in (254 mm) |
| Max Lift Capacity | 15000.26 lb (6804 kg) |
| Lift Capacity At Max - Height | 10000.17 lb (4536 kg) |
Engine
| Power | Deutz 4.1TCD turbo charged diesel |
| Emission Tier Level | Tier 4i |
| Electrical System | System voltage 12 volt |
| Battery | 1000 CCA at 0˚F (-18˚C) |
| Engine Model | GTH™ -1544 |
| Gross Power | 154 hp (114.9 kw) |
Capacities
| Hydraulic Tank - Total System | 77 gal (291.5 L) |
| Fuel Tank | 47 gal (178 L) |
| Hydraulic Tank | 48 gal (181.7 L) |
Operational
| Retract | 16 sec |
| Extend | 14 sec |
| Fork Cross Section | 354.4 in (9000 mm) |
| Turning Radius - Axle Outside | 14.6 ft in (4.5 m) |
| Drive Speed | 18 mph (29 km/h) |
| Drawbar Pull | 22500.4 lb (10206 kg) |
| Tire Size | 17.5 x 25 in. Air filled 20PR |
