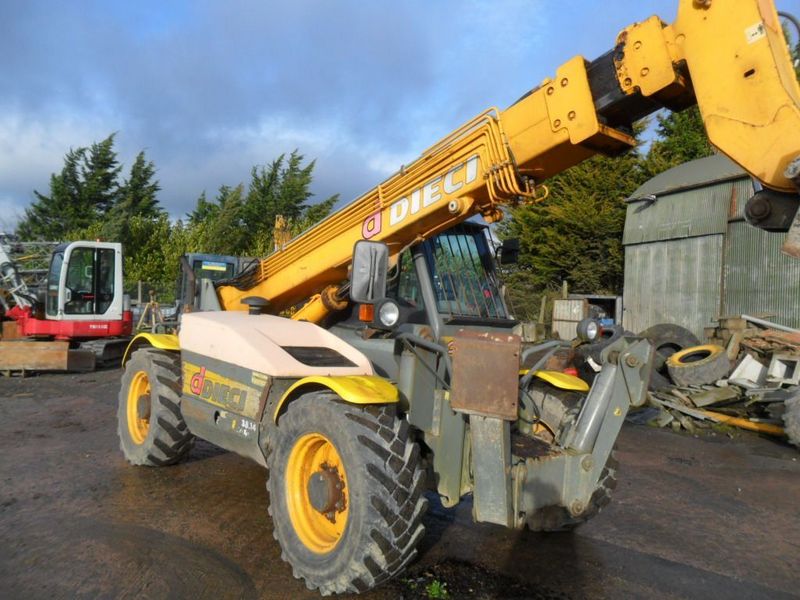

DIECI Icarus 38.14
Browse All DIECI or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 17.39 ft in (5300 mm) |
| Width Over Tires | 7.58 ft in (2310 mm) |
| Overall Height | 8.11 ft in (2470 mm) |
Lift
| Max Lift Height | 43.31 ft in (13200 mm) |
| Max Forward Reach | 29.86 ft in (9100 mm) |
| Max Lift Capacity | 8377.57 lb (3800 kg) |
| Max Load At Max Height | 5511.56 lb (2500 kg) |
| Max Load At Max Reach | 771.62 lb (350 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2388 |
| Engine Model | F4GE0454A-TC |
| Gross Power | 99.3 hp (74 kw) |
| Power Measured @ | 2300 rpm |
| Displacement | 273.7 cu in (4.5 L) |
Operational
| Operating Weight | 23369 lb (10600 kg) |
| Fuel Capacity | 27.8 gal (105 L) |
| Hydraulic System Fluid Capacity | 42.3 gal (160 L) |
| Tire Size | 16/70x20 MPT04 |
Transmission
| Transmission Type | Hydrostatic with variable capacity pump |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 24.9 mph (40 km/h) |
| Max Speed - Reverse | 24.9 mph (40 km/h) |
Hydraulic
| Pump Type | Gear pump |
| Pump Flow Capacity | 26.5 gal/min (100 L/min) |
| Relief Valve Pressure | 3335.9 psi (23000 kPa) |
