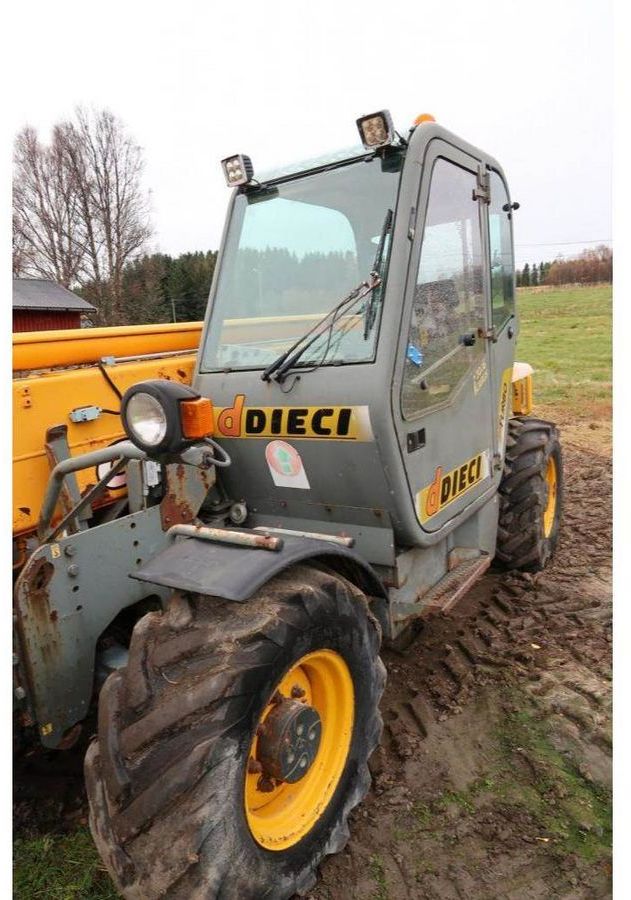

DIECI Icarus 30.16
Browse All DIECI or Telescopic Forklift Models
Contents:
Lift
| Max Lift Height | 50.53 ft in (15400 mm) |
| Max Forward Reach | 38.39 ft in (11700 mm) |
| Max Lift Capacity | 6613.87 lb (3000 kg) |
| Max Load At Max Height | 1763.7 lb (800 kg) |
| Max Load At Max Reach | 661.39 lb (300 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2388 |
| Engine Model | F4GE0454A-TC |
| Gross Power | 99.3 hp (74 kw) |
| Power Measured @ | 2300 rpm |
| Displacement | 273.7 cu in (4.5 L) |
Operational
| Operating Weight | 24427.3 lb (11080 kg) |
| Fuel Capacity | 27.8 gal (105 L) |
| Hydraulic System Fluid Capacity | 42.3 gal (160 L) |
| Tire Size | 16/70x20 MPT04 |
Transmission
| Transmission Type | Hydrostatic with variable capacity pump |
| Max Speed - Forward | 18.7 mph (30 km/h) |
Hydraulic
| Pump Type | Gear pump |
| Pump Flow Capacity | 26.5 gal/min (100 L/min) |
| Relief Valve Pressure | 3335.9 psi (23000 kPa) |
