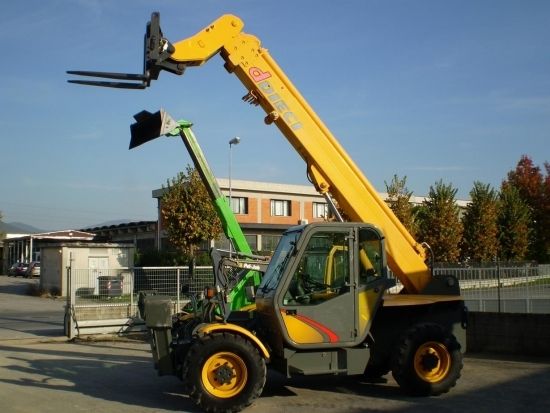

DIECI Icarus 35.13
Browse All DIECI or Telescopic Forklift Models
Contents:
Lift
| Max Lift Height | 42.33 ft in (12900 mm) |
| Max Forward Reach | 29.86 ft in (9100 mm) |
| Max Lift Capacity | 7716.18 lb (3500 kg) |
| Max Load At Max Height | 5511.56 lb (2500 kg) |
| Max Load At Max Reach | 771.62 lb (350 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2388 |
| Engine Model | F4GE0454A-TC |
| Gross Power | 99.3 hp (74 kw) |
| Power Measured @ | 2300 rpm |
| Displacement | 273.7 cu in (4.5 L) |
Operational
| Operating Weight | 23369 lb (10600 kg) |
| Fuel Capacity | 27.8 gal (105 L) |
| Hydraulic System Fluid Capacity | 42.3 gal (160 L) |
| Tire Size | 16/70x20 MPT04 |
Transmission
| Transmission Type | Hydrostatic with variable capacity pump |
| Max Speed - Forward | 18.7 mph (30 km/h) |
Hydraulic
| Pump Type | Gear pump |
| Pump Flow Capacity | 26.5 gal/min (100 L/min) |
| Relief Valve Pressure | 3335.9 psi (23000 kPa) |
