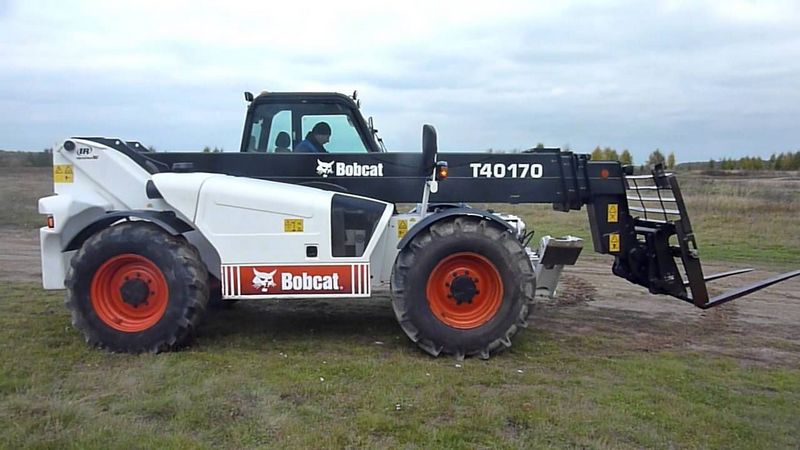

Bobcat T40170
Browse All Bobcat or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 20.38 ft in (6210 mm) |
| Ground Clearance | 1.66 ft in (503 mm) |
| Width Over Tires | 7.86 ft in (2394 mm) |
| Overall Height | 8.12 ft in (2473 mm) |
| Wheelbase | 9.36 ft in (2850 mm) |
| Turning Radius Outside Tires | 13.98 ft in (4260 mm) |
Lift
| Max Lift Height | 56.37 ft in (17180 mm) |
| Max Forward Reach | 44.85 ft in (13670 mm) |
| Max Load At Max Reach | _ - ( ) |
| Max Load At Max Height | 2755.78 lb (1250 kg) |
| Max Lift Capacity | 8818.49 lb (4000 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2351 |
| Engine Model | 1004.40T |
| Gross Power | 100 hp (74.5 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 296.5 lb ft (402 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 268.6 cu in (4.4 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 24184.8 lb (10970 kg) |
| Fuel Capacity | 37 gal (140 L) |
| Hydraulic System Fluid Capacity | 40.5 gal (153 L) |
| Tire Size | 400/80x24 |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 18.7 mph (30 km/h) |
| Max Speed - Reverse | 18.7 mph (30 km/h) |
Hydraulic
| Pump Type | Gear |
| Pump Flow Capacity | 37.6 gal/min (142 L/min) |
| Relief Valve Pressure | 3626 psi (25000 kPa) |
