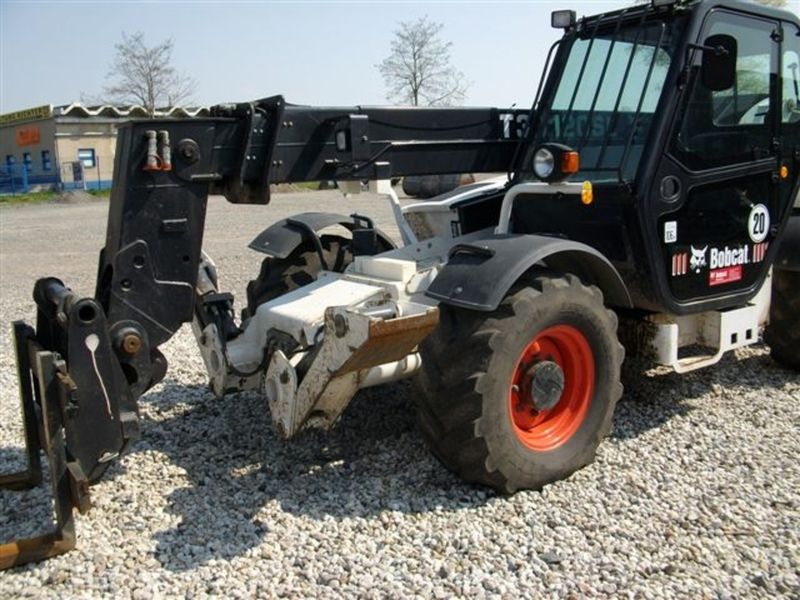

Bobcat T35120L
Browse All Bobcat or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 17.8 ft in (5425 mm) |
| Ground Clearance | 1.67 ft in (506 mm) |
| Width Over Tires | 7.28 ft in (2216 mm) |
| Overall Height | 8.57 ft in (2610 mm) |
| Wheelbase | 9.36 ft in (2850 mm) |
| Turning Radius Outside Tires | 12.8 ft in (3900 mm) |
Lift
| Max Lift Height | 38.13 ft in (11620 mm) |
| Max Forward Reach | 26.58 ft in (8100 mm) |
| Max Load At Max Reach | 881.85 lb (400 kg) |
| Max Load At Max Height | 5070.64 lb (2300 kg) |
| Max Lift Capacity | 7716.18 lb (3500 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2351 |
| Engine Model | 1104C-44T |
| Gross Power | 100 hp (74.5 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 303.9 lb ft (412 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 268.6 cu in (4.4 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 17130 lb (7770 kg) |
| Fuel Capacity | 37 gal (140 L) |
| Hydraulic System Fluid Capacity | 33.1 gal (125 L) |
| Tire Size | 400/80x24 |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 18.7 mph (30 km/h) |
| Max Speed - Reverse | 18.7 mph (30 km/h) |
Hydraulic
| Pump Type | Gear |
| Pump Flow Capacity | 24.1 gal/min (91 L/min) |
| Relief Valve Pressure | 3843.5 psi (26500 kPa) |
