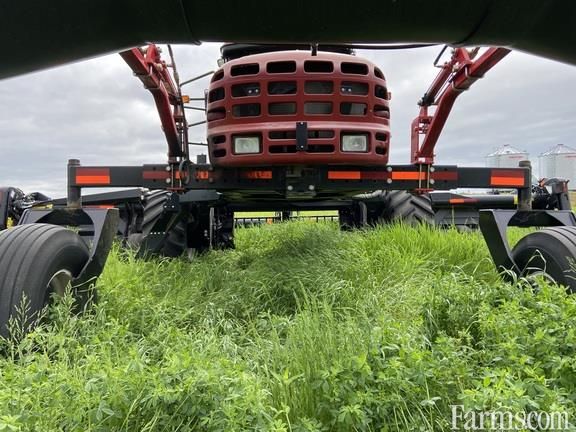

Westward M100
Contents:
Dimensions
| Wheelbase | 12.94 in (3942 mm) |
| Ground Clearance | 45.67 in (1160 mm) |
| Front Wheel Tread Width | 134.26 in (3410 mm) |
| Rear Wheel Tread Width - Max | 130.71 in (3320 mm) |
| Rear Wheel Tread Width - Min | 130.71 in (3320 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2347 |
| Power | 99 hp (73.9 kw) |
| Power Measured @ | 2600 rpm |
| Displacement | 201.4 cu in (3.3 L) |
| Aspiration | Turbocharge |
Operational
| Operating Weight W/O Attachment | 8800 lb (3991.7 kg) |
| Fuel Capacity | 97 gal (367.2 L) |
| Front Tire Size | 18.4 x 26 Bar or turf |
| Rear Tire Size | 10 x 16 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 130 amps |
Transmission
| Transmission Type | Hydrostatic, 2 speed |
| Max Speed | 16 mph (25.8 km/h) |
| Final Drive Type | Planetary Gear Reduction |
