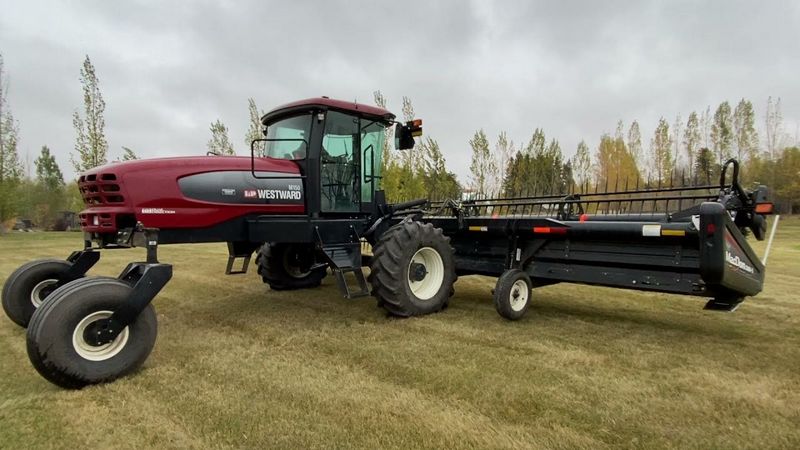

Westward M150
Contents:
Dimensions
| Wheelbase | 12.94 in (3942 mm) |
| Ground Clearance | 45.67 in (1160 mm) |
| Front Wheel Tread Width | 134.26 in (3410 mm) |
| Rear Wheel Tread Width - Max | 134.18 in (3408 mm) |
| Rear Wheel Tread Width - Min | 94.81 in (2408 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2347 |
| Power | 130 hp (97 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 274.7 cu in (4.5 L) |
| Aspiration | Turbocharge |
Operational
| Operating Weight W/O Attachment | 10700 lb (4853.5 kg) |
| Fuel Capacity | 97 gal (367.2 L) |
| Front Tire Size | 18.4 x 26 Bar or turf |
| Rear Tire Size | 10 x 16 |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 130 amps |
Transmission
| Transmission Type | Hydrostatic, 2 speed electric shift motors |
| Max Speed | 23 mph (37.1 km/h) |
| Final Drive Type | Planetary Gear Reduction |
