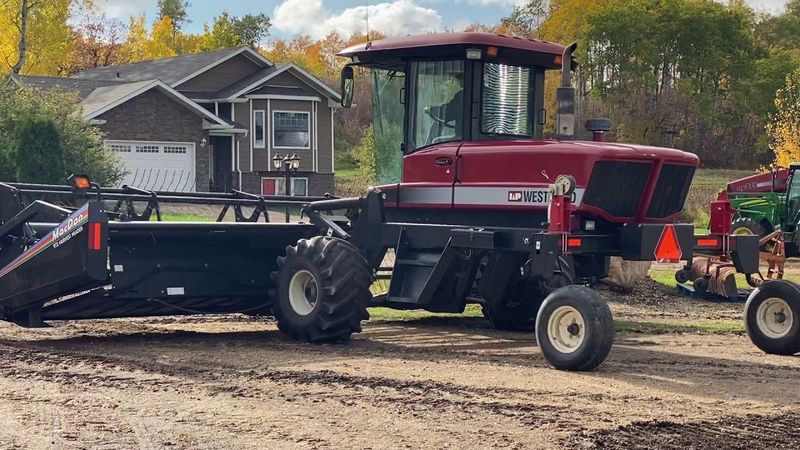

Westward 9250 SP
Contents:
Dimensions
| Wheelbase | 11.23 in (3420 mm) |
| Ground Clearance | 38.27 in (972 mm) |
| Front Wheel Tread Width | 118.12 in (3000 mm) |
| Rear Wheel Tread Width - Max | 120 in (3048 mm) |
| Rear Wheel Tread Width - Min | 120 in (3048 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2347 |
| Power | 80 hp (59.7 kw) |
| Power Measured @ | 2500 rpm |
| Aspiration | Natural |
| Displacement | 238 cu in (3.9 L) |
Operational
| Operating Weight W/O Attachment | 7019 lb (3183.8 kg) |
| Fuel Capacity | 75 gal (284 L) |
| Front Tire Size | 21.5 L - 16.1 Turf or Bar-Tread |
| Rear Tire Size | 16.5 L - 16.1 |
| Alternator Supplied Amperage | 105 amps |
Transmission
| Transmission Type | Single Speed |
| Max Speed | 12 mph (19.4 km/h) |
| Final Drive Type | Planetary Gear Reduction Power Wheel |
