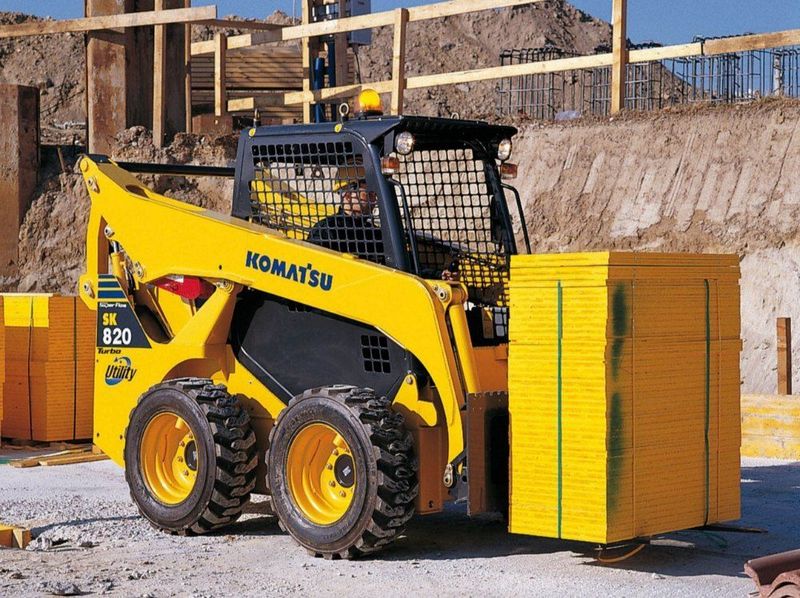

Komatsu SK820-5
Browse All Komatsu or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 11.42 ft in (3480 mm) |
| Width Over Tires | 5.44 ft in (1658 mm) |
| Ground Clearance | 8.27 in (210 mm) |
| Height To Top Of Cab | 6.57 ft in (2001 mm) |
| Wheelbase | 3.45 ft in (1050 mm) |
| Clearance At Max Lift And Dump | 7.19 ft in (2190 mm) |
| Reach At Max Lift And Dump | 25.99 in (660 mm) |
| Turning Radius From Center - Machine Rear | 65.63 in (1667 mm) |
| Turning Radius From Center - Inc Bucket | 79.38 in (2016 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | S4D84E-1FD |
| Gross Power | 54 hp (40.3 kw) |
| Net Power | 51.8 hp (38.7 kw) |
| Power Measured @ | 2800 rpm |
| Aspiration | turbocharged |
| Displacement | 122.1 cu in (2 L) |
Operational
| Operational Weight | 6481.6 lb (2940 kg) |
| Fuel Capacity | 14.1 gal (53 L) |
| Cooling System Fluid Capacity | 2.2 gal (8 L) |
| Engine Oil Fluid Capacity | 2.2 gal (8 L) |
| Max Speed | 10 mph (16 km/h) |
| Hydraulic System Fluid Capacity | 10.1 gal (38 L) |
| Chain Box Fluid Capacity - Each Side | 8.2 gal (31 L) |
| Operating Speed | 6.6 mph (10.5 km/h) |
| Tire Size | 10-16.5 8PR |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
Loader
| Breakout Force | 3529.7 lb (1601 kg) |
| Operating Load Rating | 1904.8 lb (864 kg) |
| Tipping Angle | 3807.4 degrees |
| Bucket Capacity | 0.8 yd3 (0.6 m3) |
Hydraulic
| Pump Type | Komatsu Gear |
| Pump Flow Capacity | 15.9 gal/min (60 L/min) |
| Relief Valve Pressure | 3045.8 psi (21000 kPa) |
